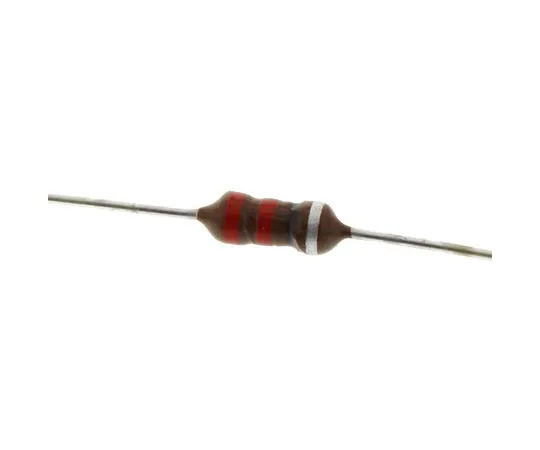

63-4721-10 EPCOS 18 μH ±10% Ferrite Leaded Inductor, Max SRF:17MHz, Q:60, 580mA Idc, 670mΩ Rdc BC B78108S1183K000
Product Description
Product Model: 63-4721-10Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-4721-10
Product Brand: EPCOS
Features
- Epcos B78108S BC Series Axial Inductors. Consists of a large ferrite drum core with enamel copper wire winding with a flame-retardant lacquer coating Suitable for RF blocking and filtering, decoupling and interference suppression, antenna systems, energy saving lamps and automotive electronics LBC type also suitable for telecommunications (16 kHz blocking filter) Inductance indicated by colour bands in accordance with IEC 62 (μH)
Spec
- Quantity：1bag(10pieces)
- Inductance : 18 μH
- Maximum DC Current : 580mA
- Mounting Type : Axial
- Maximum DC Resistance : 670mΩ
- Tolerance : ±10%
- Diameter : 4mm
- Length : 11.5mm
- Dimensions : 4 (Dia.) x 11.5mm
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 17MHz
- Series : BC
- Minimum Quality Factor : 60
- CODE No.:191-0510
