Features

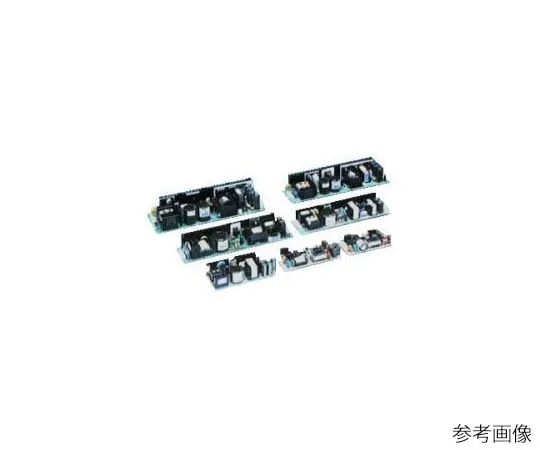

• A low-cost 100VAC input and single-output (12 V/2.5 A) circuit board switching power supply. It can be ***d for a wide range of applications such as game devices, printers, and communication terminals.
• Main specifications Input voltage range: AC85~132 V (47~440 Hz), DC110~175 V Output voltage variable range: ±10% Cooling method: Natural air cooling Rated DC output voltage/current: 12 V/2.5 A Operating ambient temperature: -10 to +60°C (-10 to +50°C: 100%, +60°C: 70%) Withstand voltage: between input and output: 2kVAC, between input and FG: 2kVAC, between output and FG: 500VAC Each 1 minute Safety standard: UL60950-1, CSA C22.2 No. 60950-1, EN60950-1 Approved, Electrical Appliance and Material Safety Law Compliant Noise terminal voltage: VCCI-B, FCC Class B Compliant Overvoltage protection, Overcurrent protection External dimensions: 50 x 132 x 23 mm
