Electronic/Electrical Parts and Controll Equipments

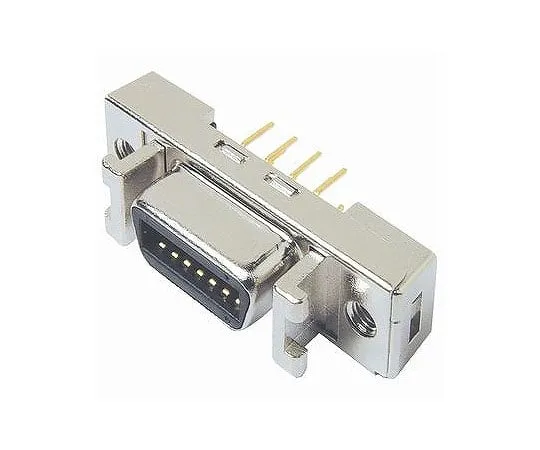

63-3061-03 Amphenol Half-Pitch Connector Board (Straight) 14 Pins 10214-6202PL
Product Description
Product Model: 63-3061-03Product Brand: 3M Company Spec […]
Contact Us
Product Details
Product Model: 63-3061-03
Product Brand: 3M Company
Spec
- Connector shape: straight
- Number of pins: 14 poles
- Rated voltage: 150 VAC (MAX)/200 VDC (MAX)
- Current rating: 0.5 A (MAX)
- Withstand voltage: Insulation breakdown must not occur within 1 mA of leakage current
- Contact resistance: Initial 35 m.OMEGA. or less
- Insulation resistance: 500 megohms or more
- Operating temperature range: -55 degrees C to + 85 degrees C
