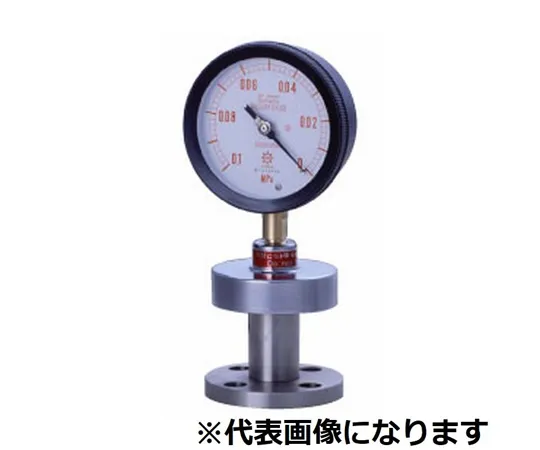

65-3630-31 Diaphragm Type Pressure Gauge Flange Type Diaphragm SUS316L Sealed Liquid Silicon A Type φ100 76φ1~-0.1 PK-5AU100JIS10K-15ARF1-0.1MPAS25CSUS304
Product Description
Product Model: 65-3630-31Product Brand: Daiichi Keiki M […]
Contact Us
Product Details
Product Model: 65-3630-31
Product Brand: Daiichi Keiki Mfg
Features
- Diaphragm type pressure gauges are integrated with a diaphragm device directly connected to a pressure receiving part, and a liquid is vacuum-sealed inside.
- A diaphragm (diaphragm) is ***d to prevent the measurement fluid from coming into direct contact with the pressure-receiving part and Bourdon tube, and a fluid suitable for smoothly transmitting the applied pressure to the pressure gauge is enclosed.
- The diaphragm is a simple plate, and various materials can be selected to match the fluid to be measured.
- [Application] It is widely ***d for the measurement of highly corrosive fluids, highly viscous liquids, and fluids containing solids such as petroleum, paper, and chemicals.
Spec
- Case External Shape: A Type
- Size: φ100
- Diameter of Diameter: 76φ
- Connection Flange: JIS10K-15ARF
- Pressure span (MPA): 1 to -0.1
- Upper Flange Material: S25C (Cr Plating)
- Diaphragm Material: SUS316L
- Lower Flange Material: SUS304
- Gasket Material: Teflon
- Sealing Liquid: Silicon
- Case Material: Resin Screw Lid Case
- Accuracy: ±1.6% F.S/Temperature 20°C±10°C
