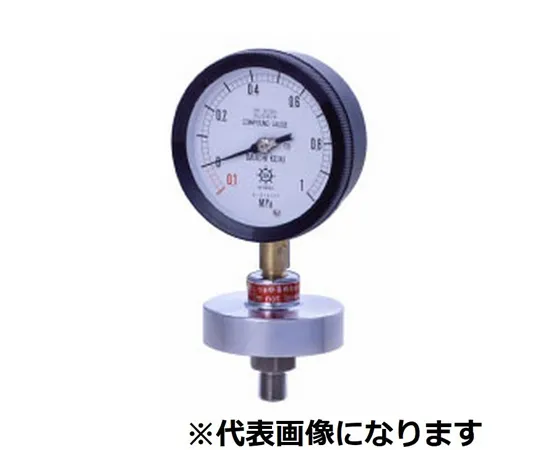

65-3629-55 Diaphragm Type Coupled Meter Screw Type Diaphragm SUS316L Sealed Liquid Silicon A Type φ75 76φ 0.1~-0.1 PK-1AU75G12B0.1-0.1MPAS25CSUS304
Product Description
Product Model: 65-3629-55Product Brand: Daiichi Keiki M […]
Contact Us
Product Details
Product Model: 65-3629-55
Product Brand: Daiichi Keiki Mfg
Features
- Diaphragm type pressure gauges are integrated with a diaphragm device directly connected to a pressure receiving part, and a liquid is vacuum-sealed inside.
- A diaphragm (diaphragm) is ***d to prevent the measurement fluid from coming into direct contact with the pressure-receiving part and Bourdon tube, and a fluid suitable for smoothly transmitting the applied pressure to the pressure gauge is enclosed.
- The diaphragm is a simple plate, and various materials can be selected to match the fluid to be measured.
- [Application] It is widely ***d for the measurement of highly corrosive fluids, highly viscous liquids, and fluids containing solids such as petroleum, paper, and chemicals.
Spec
- Case External Shape: A Type
- Size: φ75
- Diameter of Diameter: 76φ
- Connecting Screws: G1/2B
- Pressure span (MPA): 0.1 to -0.1
- Upper Flange Material: S25C (Cr Plating)
- Diaphragm Material: SUS316L
- Lower Flange Material: SUS304
- Gasket Material: Teflon
- Sealing Liquid: Silicon
- Case Material: Resin Screw Lid Case
- Accuracy: ±1.6% F.S/Temperature 20°C±10°C
