65-3624-41 GRK Vacuum Gauge with Glycerin D Type φ100 G1/2 -0.1~0MPA G-DU12-100-0.1MPA
Product Description
Product Model: 65-3624-41Product Brand: Daiichi Keiki M […]
Contact Us
Product Details
Product Model: 65-3624-41
Product Brand: Daiichi Keiki Mfg
Features
- When the pulsating pressure is high, it often becomes unusable in a short period of time, but the durability is greatly improved by using this device. The results of the comparison test between the conventional type and this tester are as follows.
- Working Pressure Gauge: 100φ x 10 MPa Reference Pressure 5 MPa
- Pulsation ±0.5 MPa Frequency 1200/min Amplitude ±0.7 mm
- General type: Needle goes up 5° in about 70 hours.
- Glycerin Encapsulated Type: Needle Up 5° in 2200 Hours
- With an ***urance ratio of more than 30 times, the deflection of the pointer during operation is approximately 1/6. In addition, since it has the same mounting hole as the general product, it is interchangeable even when the conventional anti-vibration type is ***d. Glycerin solution is equivalent to class 4 and class 3 petroleum in the Fire Defense Law, so there is little risk of fire, and since it is harmless, it can be ***d for food industry.
Spec
- Case External Shape: D-Type
- Size: φ100
- Connecting Screws: G1/2
- Connection Part Material: Brass
- Pressure span: – 0.1~0MPA
- Case Material: Aluminum Silver Plated Case
- Accuracy: ±1.6%F.S
Related product recommendations
You may also be interested in the following products
toner
65-3473-09 Closed Coupled Meter D-Type Pressure Range (MPA): -0.1~0.1 315-D851X0.1-0.1MPA
model: 65-3473-09
brand: Asahi Gauge Manufacturing
toner
3-3423-01-20 Data Logger Body for Freezer, Temperature Sensor with External with Calibration Certificate KT-115LFP
model: 3-3423-01-20
brand: Fujita Electric Works, Ltd.
toner

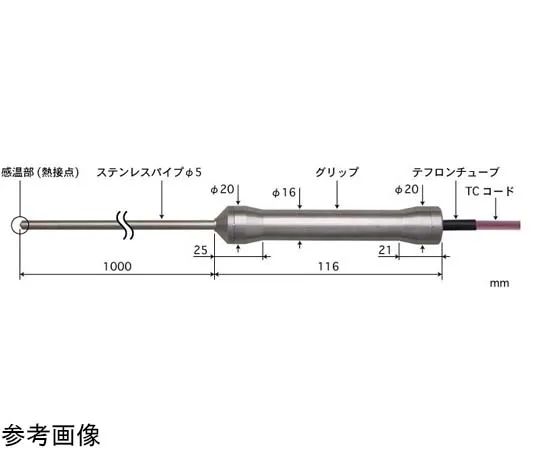

65-3533-04 ［Out of stock］HACCP Food Center Temperature Sensor BC Series with ISO document set -200~300°C 5 seconds BC-51E-100-TC1-ASPC
