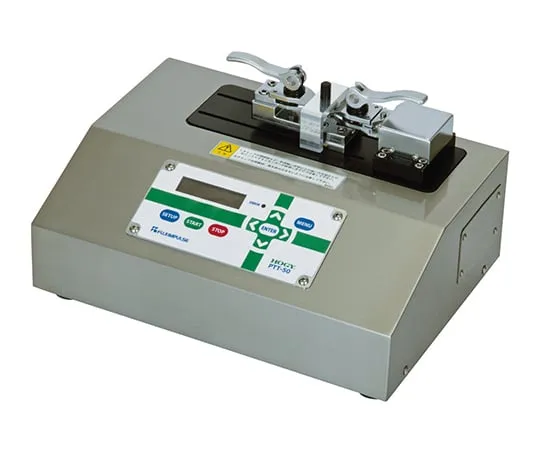

3-824-01 Seal Strength Measuring Device (For Sterilization Bags) PTT-50
model:
3-824-01
category:
chemicalproducts
Product Description
Product Model: 3-824-01 Features You can set the test p […]
Contact Us
Product Details
Product Model: 3-824-01
Features
- You can set the test piece and measure the seal strength (up to 50 N) of the sterilized bag with a button operation.
- Since 5 patterns of criteria and measurement conditions can be registered, it is possible to set according to the type of sterilization bag.
- You can do daily inspection using the attached spring before starting work.
Spec
- Size (mm): 360 x 260 x 195
- Weight (kg): 8
- Measuring range: 50N
- Measurement Units: N
- Sampling: 100 times/sec
- Minimum display digit: 0.1 N
- Measurement accuracy: ±0.2 N (±0.4% F.S.)
- Data output: Data output from USB port (dedicated data management software)
- Power supply: AC100V 50/60Hz 9W
- Data management software: compatible models/USB 2.0/1.1 interface, OS/Windows (R) XP/Vista (R)/7/8/10
- Complies with ASTM F 88 (Standard for measuring seal strength of packaging materials) and JIS Z0238 (Heat sealing soft packaging bag and semi-rigid containers test methods)
