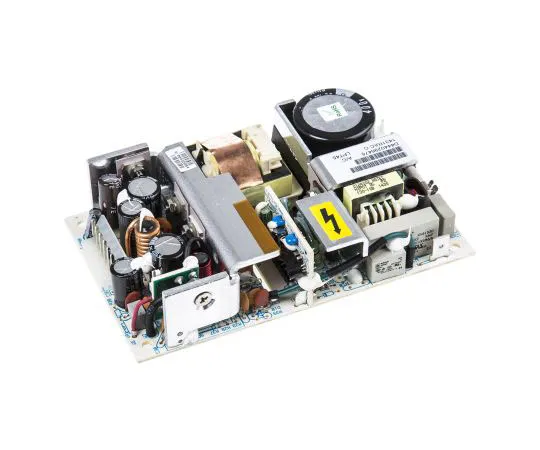

63-4717-43 Artesyn Embedded Technologies 40W Triple Output Embedded Switch Mode Power Supply SMPS, 2.5 A, 5 A, 700 mA, 5/±15V dc LPT45
model:
63-4717-43
brand:
Artesyn Embedded Technologies
Product Description
Product Model: 63-4717-43Product Brand: Artesyn Embedde […]
Contact Us
Product Details
Product Model: 63-4717-43
Product Brand: Artesyn Embedded Technologies
Features
- EN60950. VDE; UL Recognised; CSA Certified; NEMKO; BABT. Total of output loads must not exceed rating of unit. Forced air cooling of 30CFM @ 50°C increases the 25W O/P to 40W, the 40W to 55W and the 60W units to 80W, LPT80 units to 85W. Ratings are reduced with a cover kit. 25-80W Universal Input, Single/Triple Output, LP Series. Frequency 47 to 440Hz Manufacturer part nos with a T suffix de**** terminal block connection, all others feature Molex mating connectors (not provided) In-built EMI filter (Class B) Over voltage protection Overload protection 3x5in. open PCB format Remote sense on main output Adjustable main output (-5 +10%) High peak ratings for 30 seconds
Spec
- Quantity：1piece
- Output Voltage : 5/±15V dc
- Output Current : 2.5 A, 5 A, 700 mA
- Power Rating : 40W
- Number of Outputs : 3
- Input Voltage : 120 → 300 V dc, 85 → 264 V ac
- Mounting Type : Chassis Mount
- Package Type : Open Frame
- Length : 127mm
- Width : 76.2mm
- Depth : 29mm
- Weight : 230g
- Efficiency : 70%
- Maximum Temperature : +50°C
- Minimum Temperature : 0°C
- CODE No.:183-0054
