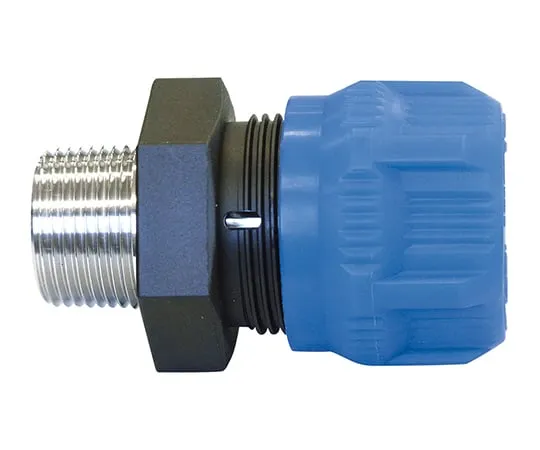

3-9385-08 Pressure Hose Fitting SMART LOCK (Stainless Steel Type) 20 A 3/4 IVL-SLS-19A26-20A
Product Description
Product Model: 3-9385-08Product Brand: ISHIGURO Feature […]
Contact Us
Product Details
Product Model: 3-9385-08
Product Brand: ISHIGURO
Features
- This is a fitting for pressure resistant hose piping such as air, water and coolant.
- It can be installed more securely and safely than a bamboo conipple connection.
Spec
- Specification: Stainless steel type
- Size (A Name): 20 A
- Size (B Name): 3/4
- Suitable hose inner diameter x outer diameter (φmm): 19 x 26
- Total length (mm): 74
- Maximum diameter (φmm): 47.5
- Maximum working pressure : 2 MPa
- Specification: Plastic bag nut + Stainless Steel Screw
