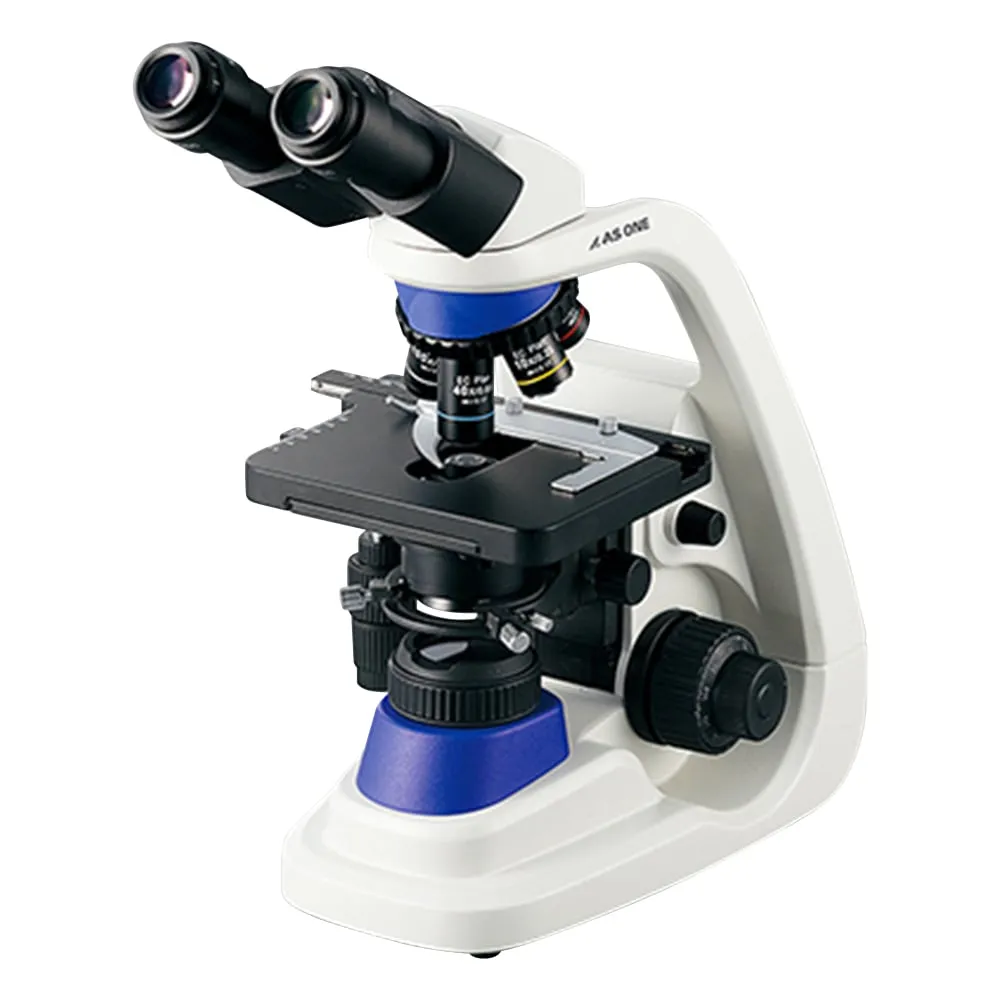

3-6692-01 Biological Microscope with EC Plan Lens, Binocular 40 - 1000 x MP38B
Product Description
Product Model: 3-6692-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-6692-01
Product Brand: AS ONE Corporation
Features
- It is a high-performance biological microscope with excellent durability for research and practical training.
- High resolution CCIS ® optical system EC plan achromat objective lens provides bright and clear contrast images.
- Since the control system is placed in a low position, it can be operated with your hands on the table.
- This stage has excellent chemical resistance and durability.
- Phase contrast microscopy can be performed by combining with an optional phase contrast observation kit.
- High resolution CCIS ® optical system EC plan achromat lens is adopted.
Spec
- Model Number: MP 38 B
- overall magnification: 40 to 1000 x
- Specifications: binocular
- Optical system: infinite color correction (CCIS (R))
- Eye lens: 10 times (Number of fields 20)
- Focal adjustment: uniaxial coarse fine motion method
- Objective Lens: EC plan achromatic lens 4 x / N.A. 0.1, 10 x / N.A. 0.25, S 40 x 100 x x / N.A. 0.65 x / N.A. 1.25 (oil)
- Mirror type: Slant angle 30 °
- Eye width adjustment range: 55 to 75 mm
- XY stage: Travel distance / left / right 76 mm and 50 mm and slide 2 pieces
- Lighting power supply: 100 to 240 V 50 / 60Hz
- Capacitor: Abbe type N.A. 1.25 (oil immersion) / 0.9 (drying) for Keller lighting
- Lighting: 3W LED Killer Lighting
- Size: Body / 210 x 410 x 415 mm, Stage / 175 x 140 mm
- Weight: about 7.2 kg
