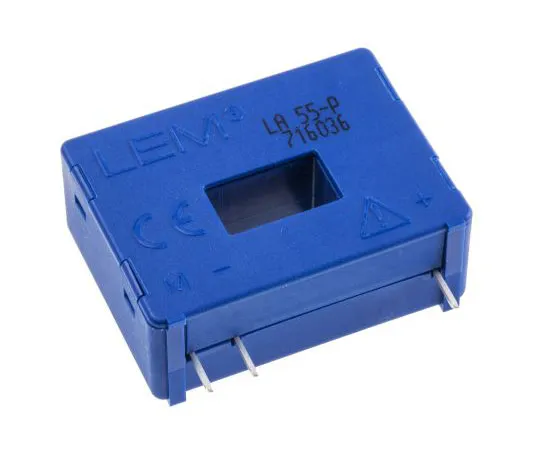

63-4717-01 LEM LA Series Closed Loop Current Sensor, 0 → 70A nominal current, 50mArms output current LA 55-P
Product Description
Product Model: 63-4717-01Product Brand: LEM Features LA […]
Contact Us
Product Details
Product Model: 63-4717-01
Product Brand: LEM
Features
- LA-P Series. Compensated closed-loop Hall effect current transducers for the measurement of continuous, alternating, pulsed and mixed currents. Excellent dynamic performance Good linearity and low temperature drift Galvanic isolation between input and measuring circuit PCB mounting Body material plastic to UL 94-V0
Spec
- Quantity：1piece
- Sensor Technology : Closed Loop
- Output Current Range : 50mArms
- Supply Voltage : 12 → 15 V
- Sensor Type : Hall Effect
- Mounting Type : PCB Mount
- Frequency Bandwidth : DC to 200 kHz
- Accuracy : ±0.9 %
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- Depth : 14.45mm
- Height : 27.6mm
- Width : 36.6mm
- CODE No.:180-7357
