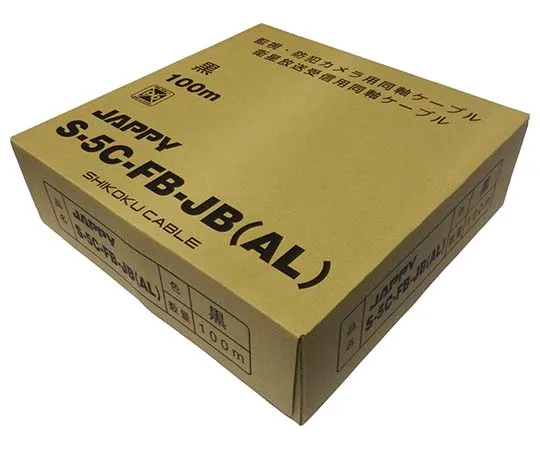

62-3146-25 Aluminum coaxial Cable (security camera, satellite broadcasting) black S-5C-FB-JBAL
Product Description
Product Model: 62-3146-25Product Brand: JAPPY Features […]
Contact Us
Product Details
Product Model: 62-3146-25
Product Brand: JAPPY
Features
- Coaxial Cable for Surveillance and Security Cameras
- 17.5% Weight Reduction Using Aluminum Wire
- ROHS Support
Spec
- Internal conductors:
- material: Soft copper wire
- outer diameter: 1.05 ±: 0.05 mm
- insulation body:
- material: foamed polyethylene
- outer diameter: 5.0 ±: 0.2 mm
- External conductor 1:
- material: Double-sided aluminum tape foil
- outer diameter: Approx. 5.1 mm
- External conductor 2:
- material: Aluminum wire
- Configuration: 0.14 ± 0.008/3/24
- outer diameter: Approx. 5.8 mm
- Coat:
- material: PVC
- outer diameter: 7.7 ±: 0.5 mm
- Approximate mass (kg/km): 52
- Internal conductor resistance: 21.1 ohms/km or less
- Color: Black
- Quantity: 100 m/roll
