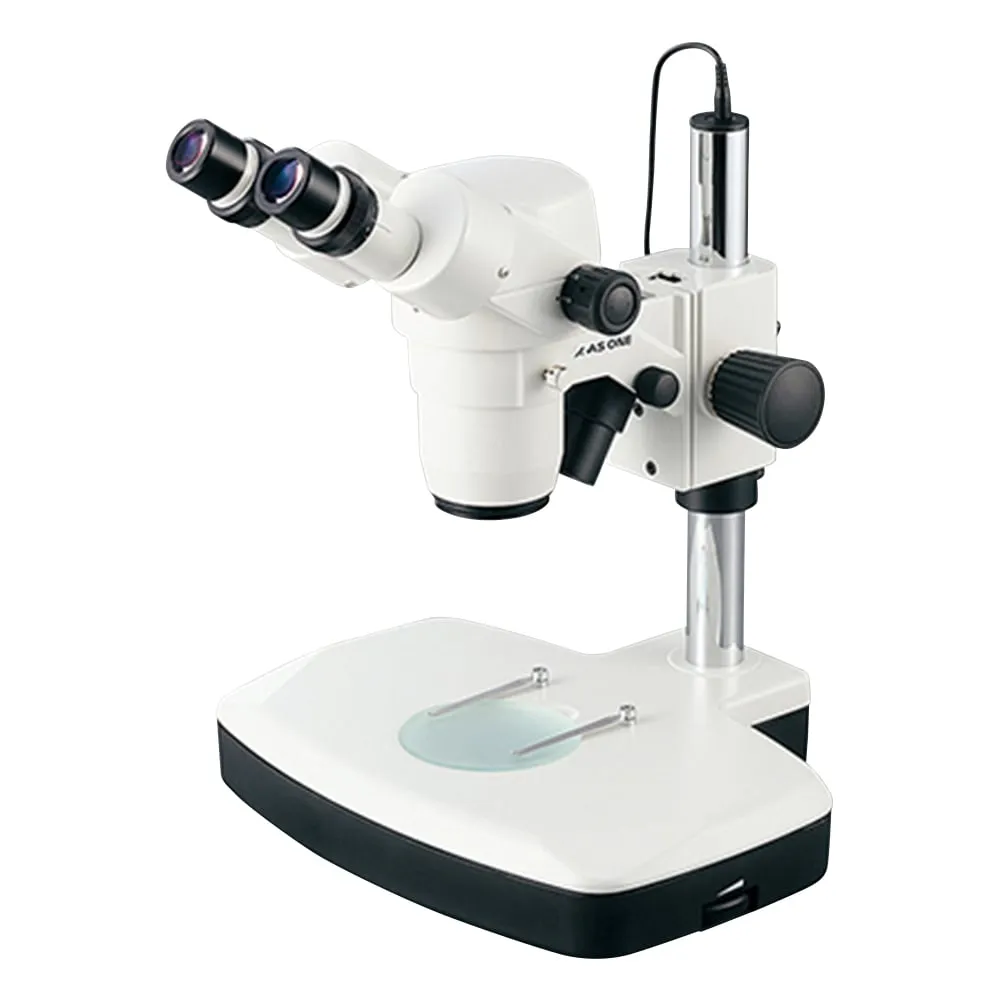

3-6690-01 LED Stereomicroscope Binocular 7.5 - 50 x SZM223B
Analyzer, Testing Equipment

3-6690-01 LED Stereomicroscope Binocular 7.5 - 50 x SZM223B

model: 3-6690-01
brand: AS ONE Corporation

Product Description

Product Model: 3-6690-01Product Brand: AS ONE Corporati […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 3-6690-01
Product Brand: AS ONE Corporation

Features

  • The Greenough optical high-performance stereomicroscope is suitable for a wide range of applications, including quality control, bioscience, and materials research.
  • You can click stop the zoom handle at six positions to reproduce the same zoom.
  • With a zoom ratio of 1:6.7 and an operating distance of 113 mm, it has excellent operability.
  • High eyepoint for high vision even while wearing glasses.
  • It enables clear stereoscopic observation with a wide field of view of 23 mm.
  • You can reproduce the same zoom with 6 zoom click stops.
  • Equipped with LED epi-illumination and transillumination to realize a wide field of view of 23.
  • The working distance is 113 mm, so you can work while using tools such as tweezers.
  • Simple measurement is possible using the graduated eyepiece MEP0114 (sold separately).
  • Experience clarity and high resolution! High performance in Greenot optics

Spec

  • Model number: SZM 223 B
  • overall magnification: 7.5 to 50 x
  • Specifications: binocular
  • Optical system: Glinot equation
  • Eye lens: 10 times (WF 10 x)
  • Zoom ratio: 1: 6.7 (Click Stop 6) (0.75 × 1 × 2 × 3 × 3 × 4 × 5 ×)
  • Mirror type: Slant angle 35 °
  • Actual field diameter: φ 23 mm
  • Eye width adjustment range: 52 to 75 mm
  • Stage: 330 x 280 mm
  • Lighting: Light and transmission 3W LED
  • Lighting power supply: 100 to 240 V 50 / 60Hz
  • Operating distance: 113 mm
  • main unit size: 330 x 280 x 400 mm
  • Weight: about 12 kg
