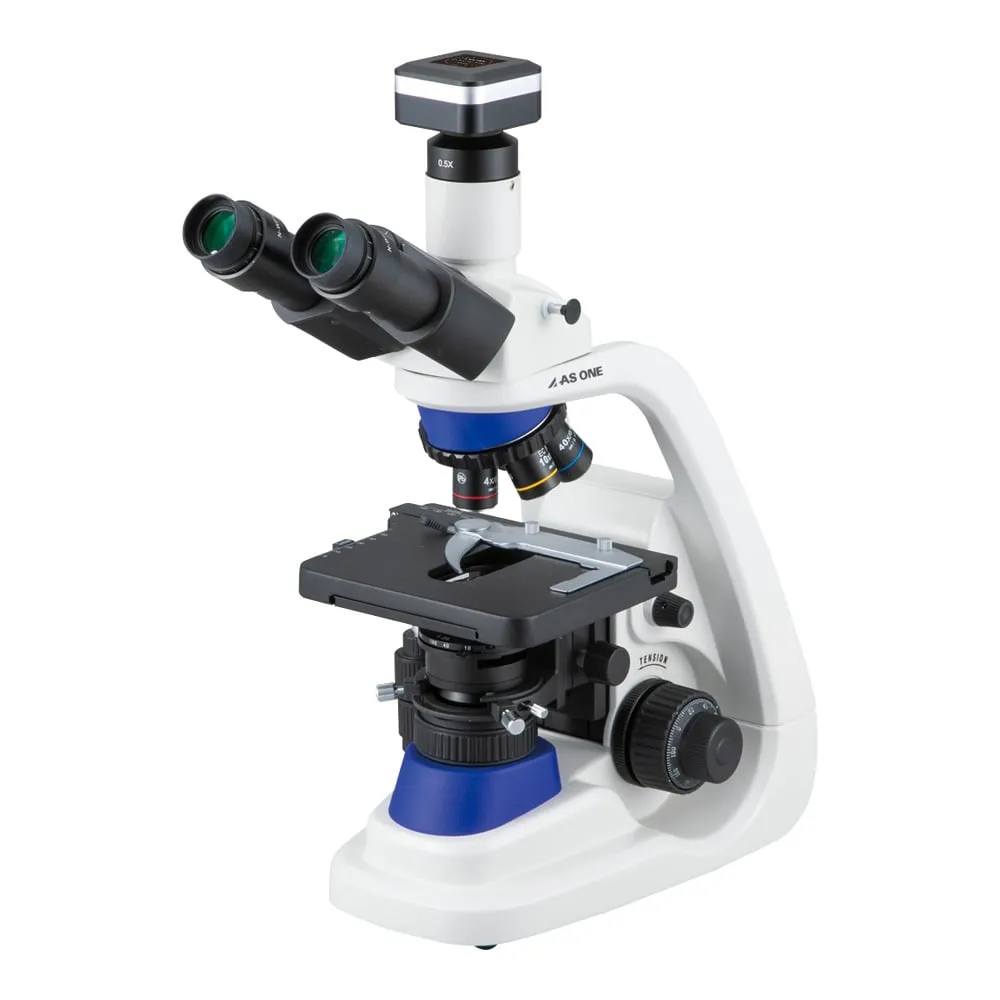

4-749-12 EC plan lens biomicroscope (camera set) MP38C500N
Product Description
Product Model: 4-749-12Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 4-749-12
Product Brand: AS ONE Corporation
Features
- It ***s a high-resolution CCIS(R) optics EC-plan chromatic objective lens to provide bright and clear contrast images.
- It ***s full-scale Kaler lighting to reduce heat damage to the sample.
- Digital microscope camera with excellent color reproduction.
- The operating system is placed in a low position, so you can operate it while keeping your hand on the table.
- Plug and Play simplifies device installation.
- You can write while moving the stage with the left handle.
- It comes with a USB camera for convenient saving of sample images.
Spec
- Overall Magnification: 40 ~ 1000 x
- Camera pixels: 5 million pixels
- Number of pieces: 1 set
- Optics: Infinity color correction (CCIS ®)
- Capacitor: Abbe type N.A. 1.25 (oil immersion)/0.90 (dry) for Kehler lighting
- Lighting: 3W (LED Kaler Lighting)
- Eyepiece: 10 x (field of view/20)
- XY Stage (travel distance): Left/Right/76 mm, Front/Back/50 mm (holds 2 slides)
- Focusing: Uniaxial coarse fine motion system
- Size: Microscope body/210 x 410 x 415 mm, Stage/175 x 140 mm, Camera/60 x 60 x 32 mm
- Objective: EC plan achromatic lens 4 x/N.A. 0.1 x 10 x/N.A. 0.25 x S 40 x/N.A. 0.65 x S 100 x/N.A. 1.25 (oiL)
- Lighting Source: 100 ~ 240 VAC 50/60 Hz
- Cylindrical type: tilt angle 30 degrees
- Weight: approx. 7.2 kg, Camera/approx. 200 g
