65-3540-14 Temperature Sensor for Static Surface Type A Series Φ12 mm 90° (Pipe R B***) Standard Plug (Thermocouple Homogeneous Metal) 30 mm E Type A-343E-00-1-TC1-ASP
Product Description
Product Model: 65-3540-14Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3540-14
Product Brand: ANRITSU METER CO., LTD.
Features
- Series A is a general-purpose temperature sensor for stationary surfaces.
- It can measure not only the mold surface but also the surface temperature of any object.

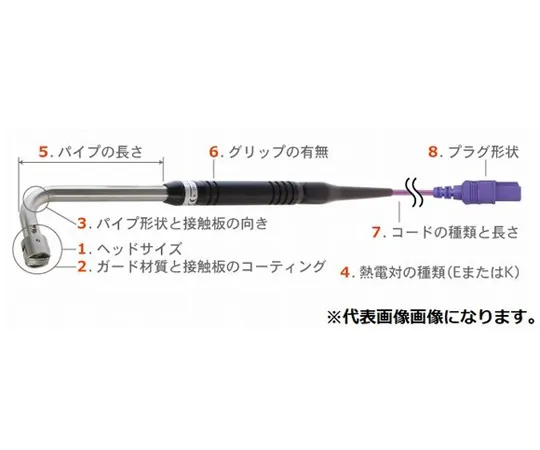

Spec
- Head Size: Φ12 mm
- Guard Material and Contact Plate Coating: Stainless Steel Guard (For High Temperature/Grounding/A-*4**-00 without grip cannot be manufactured.)
- Pipe Shape and Contact Plate Orientation: 90° (Pipe R B***) Contact Plate and Pipe Longitudinally Parallel/A-**2*-00/A-**3*-00/A-**4*-00/A-**5*-00/A-**6*-00/A-**7*-00 cannot be manufactured without grip.
- Thermocouple Type: E Type
- Pipe Length (mm): 30 (A-*4**-00 cannot be manufactured without grip. / 3A -**2*-00/A-**3*-00/A-**4*-00/A-**5*-00/A-**6*-00/A-**7*-00 cannot be made without a grip. )
- With grip: Yes
- Code Type: Standard Code
- Cord length (m): 1
- Plug Shape: Standard Plug (Thermocouple Homogeneous Metal)
