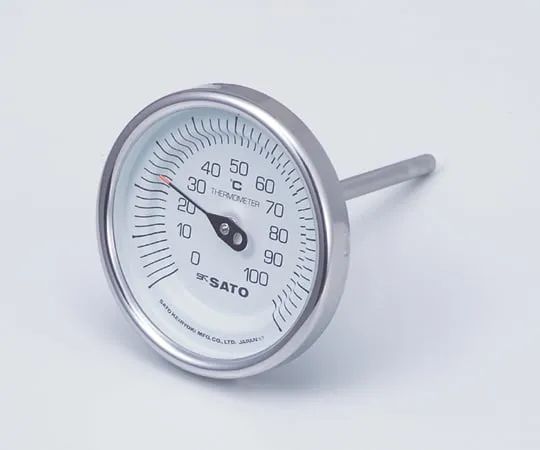

2-1340-01-57 Bimetal Thermometer, Φ8 x 50 mm with Chinese Calibration Certificate BM-T-90S
Product Description
Product Model: 2-1340-01-57Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 2-1340-01-57
Product Brand: AS ONE Corporation
Features
- All the metal parts on the outer surface are made of SUS304, which is a robust industrial thermometer. The shape is S type (vertical)
- Since it ***s bimetal expansion, it is an eco-fri***ly product without power supply.
- When you place an order, please specify a range that is comfortable for the temperature to be ***d. (Example When using 100°C, specify 0~150°C.)
- * Be sure to *** a protective pipe (optional) in the following cases.
- * When the material to be measured is high pressure (5 kg/cm or more) or corrosive (However, the material SUS304 may not be considered suitable for corrosion resistance due to the environment).
Spec
- Measuring range: 0 ~ 100 degrees C
- Size under screw: Φ8 x 50 mm
- Weight: 260 g
- Minimum scale: 2 degrees
- Material: Stainless steel (SUS 304)
- Mounting screws: R (PT) 1/2
- Case outer diameter: phi 90 mm
- Stencil case
- Securities Code: 2010 -30
- Calibration points are 2 points: 23 degrees Celsius and 80 degrees Celsius (no judgment). If you would like additional points, please contact us separately.
