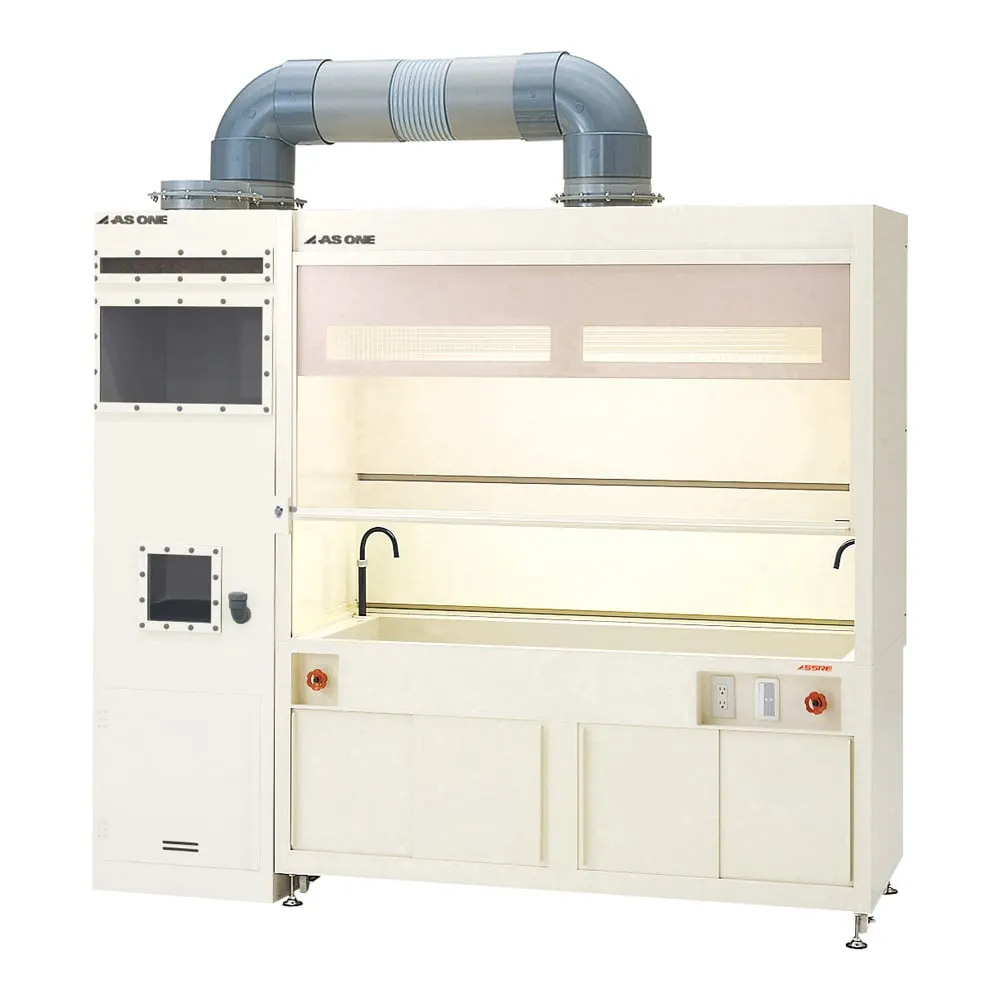

3-5862-01 Etching Chamber 1 Tank Type, Wet Scrubber Horizontal Type 1700 x 820/750 x 2150 PS-1200SC
model:
3-5862-01
category:
gasmonitors
Product Description
Product Model: 3-5862-01 Features This type combines th […]
Contact Us
Product Details
Product Model: 3-5862-01
Features
- This type combines the side surface of an etching draft PS type (1 tank type) with a wet scrubber (indoor installation type).
Spec
- Exteriors, interiors, sinks: Hard PVC (vinyl chloride resin)
- Window: Transparent hard PVC (vinyl chloride resin)
- Supply water plug: Gooseneck type universal water plug for pure water
- Lighting devices: Using fluorescent lamps, with switch
-
- Surface speed (m/s) 350mm opening: 0.5
- Air volume (m3/min): 12
- Connection port (φmm): 200
- Duct diameter (φmm): 200
- Static pressure (Pa): 539
-
- Scrubber frontage (mm): 500
- Feed drainage: 1
- Fluorescent lamps (volume): 20W x 2
- Outlet AC 100V 15A double x 1 pieces included
- Included scrubber: Wet scrubber indoor installation type
- Outer dimension (mm): 1700 x 820/750 x 2150
- Inner dimension (mm): 1100 x 670 x 1100
- Weight (kg): 426
- Model number: PS-1200SC
- *Transportation cost, carrying cost, installation cost, assembly cost, etc. are required separately. Please contact with us.
