65-3536-16 Tape Type Multi-Purpose Temperature Sensor ST Series Standard Type/Pointing -50~210°C 100 mm E Type ST-11E-010-TS1-ASP
Product Description
Product Model: 65-3536-16Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3536-16
Product Brand: ANRITSU METER CO., LTD.
Features
- The ST Series is an ultra-thin flexible tape-shaped multi-purpose temperature sensor.
- [Caution] ST series is designed to be ***d with the tape part attached to the object to be measured or sandwiched. Please **** that the operating temperature limit is the temperature shown in the table below when the tape part is attached or ***d by a method other than pinching.
- Tape length ≤ 150 mm→200°C
- The coating of the ST series is welded with Teflon resin or bonded with an adhesive. If the tape is placed in the air and maintained at a temperature higher than the operating temperature limit shown below, the coating may peel off and the thermocouple may short out. Please *** with care.

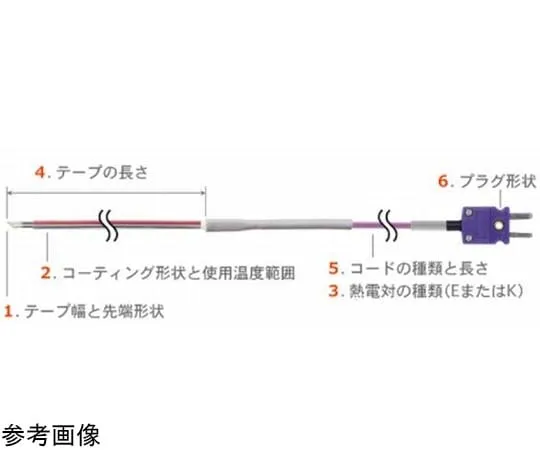

Spec
- Tape Width/Tip Shape: Standard Type/Cone
- Coating Shape: Low Temperature Teflon (Tip Exposed)
- Operating temperature range: -50~210°C
- Thermocouple Type: E Type
- Tape Length: 100 mm
- Code Type: Low Temperature Type Standard Code
- Cord length (m): 1
- Plug Shape: Standard Plug (Thermocouple Homogeneous Metal)
