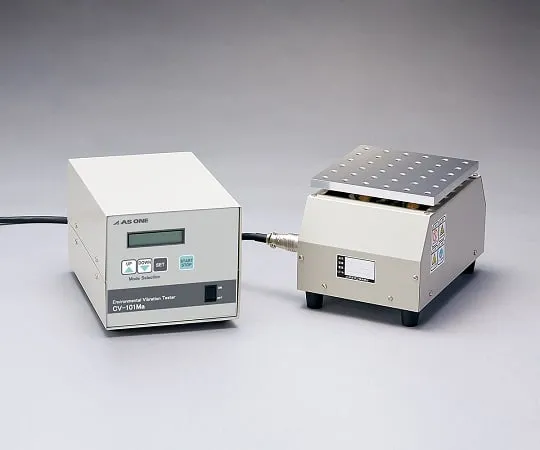

1-7593-21 Tabletop vibration testing machine CV-101Ma
Product Description
Product Model: 1-7593-21Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-7593-21
Product Brand: AS ONE Corporation
Features
- The vibration table is designed to vibrate at the desired frequency and acceleration for easy vibration testing.
- Two modes of operation are available: constant frequency mode and sweep mode.
- In constant frequency mode, vibrations are continuously applied at the set acceleration and frequency for a fixed time, and the machine stops automatically.
- In the sweep mode, the acceleration is fixed and reciprocating motion (cycle) at the lowest to highest frequency is repeated, and the automatic stop occurs after a certain time.
Spec
- Maximum load of the object (kg): 1
- Specifications: Control + Drive
- Maximum amplitude: 5.0 mm (single peak)
- Number of pieces: 1
- Vibration frequency: 10 ~ 300 Hz
- Operating mode: Constant frequency mode/Swept mode
- Program running time: 1 to 99 minutes (minute increments: 1 minute)
- Maximum acceleration: 2G (Limited to amplitude.)
- Power supply: 100 VAC 50/60 Hz
- Power consumption: 200 W
- Sizes: control box/152 x 227 x 143 mm, actuator/220 x 150 x 137 mm
- Weight: control box/1.6 kg, actuator/12 kg
- *The maximum amplitude is 10 mm (+/- 5 mm) but is limited by the load on the payload.
- *A maximum load of 1 kg does not result in a maximum acceleration of 2 G and a maximum amplitude of 5.0 mm.
- *It is recomm***ed to *** the attachment sold separately when conducting the XYZ triaxial vibration test.
*This product might require extra fees.
