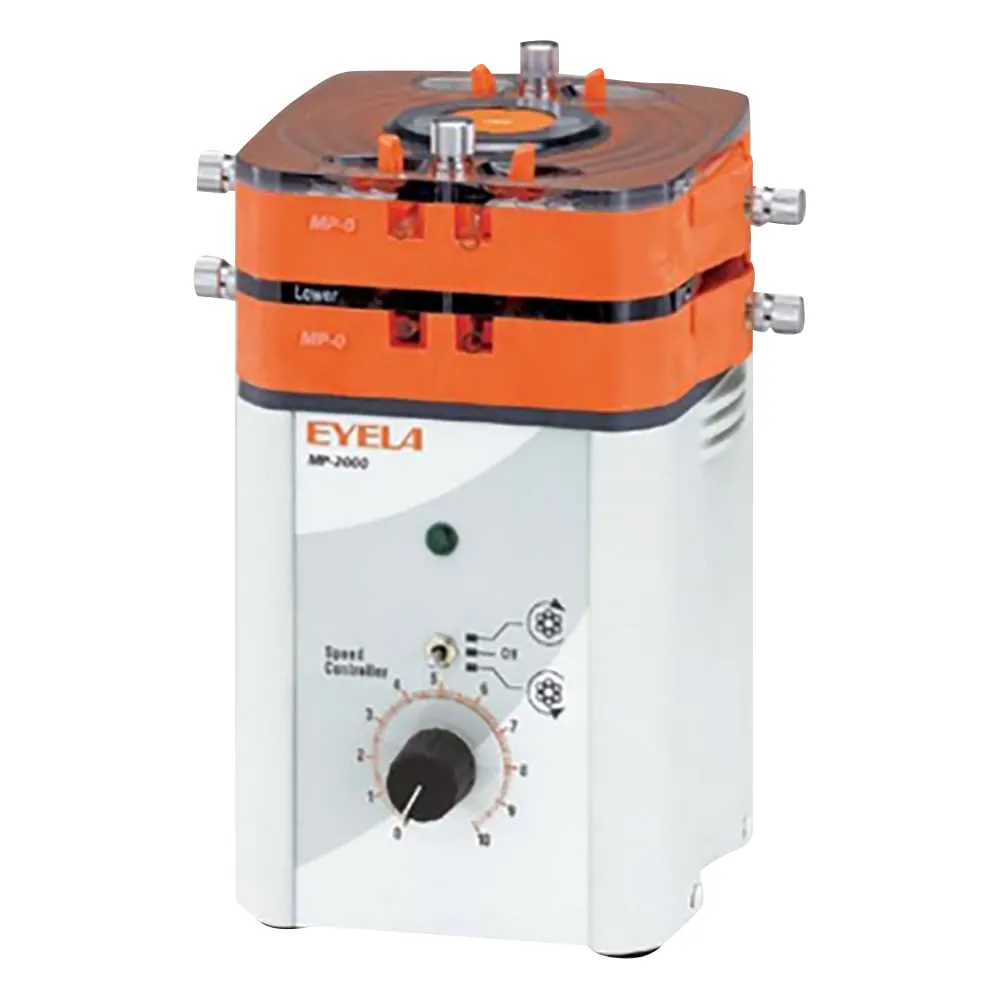

Spec

• Type: Low Flow
• Tube holding system: screw variable
• Performance:
• Flow rate range: 0.5 ~ 72.5 mL/h x 4
• Flow rate accuracy: within +/- 2% (repeatability: within +/- 1%)
• Maximum discharge pressure: 196 kPa (2 kg/cm2)
• Maximum suction pressure: 9.8 kPa (0.1 kg/cm 2)
• Liquid viscosity/temperature: Max. 2 Pa/s (2000 cP)/0 ~ 60 degrees C (non-freezing)
• Features:
• rotation settings: volume settings
• Liquid feeding direction: Forward/reverse switchable
• Configuration:
• Motor: AC speed control induction motor output 15 W
• Driving circuit: Speed feedback control
• Tube case: PET resin
• Safety features: Thermal protector, f***
• Standard:
• Number of tubes: 4
• Number of tube case tiers: 2 tiers
• Usable tube materials: Silicon, Tygon ®, Versilon (Fullan ®), Pharmed ®
• Usable tube diameter: outer diameter 3 ~ 6.1 mm
• Operating ambient temperature range: 0 ~ 40 degrees Celsius (noncondensing)
• External dimensions (mm): 137 (166) W x 145 (164) D x 206 (219) H
• Mass: About 3.5 kg
• Power input/voltage: 0.4 A, 40 VA/AC 100 V 50/60 Hz
• *Performance is measured at room temperature of 20 degrees Celsius, rated power supply voltage, water, liquid temperature of 18 degrees Celsius, back pressure of 0, and specified silicon tube.
• *Tubes sold separately. Performance such as flow rate and discharge pressure varies slightly dep***ing on the tube ***d.
• *If the viscosity of the liquid ***d exceeds 0.1 Pa s (100 cP), the discharge may decrease.
• *Dimensions in parentheses include projections.
• Code: 252640
