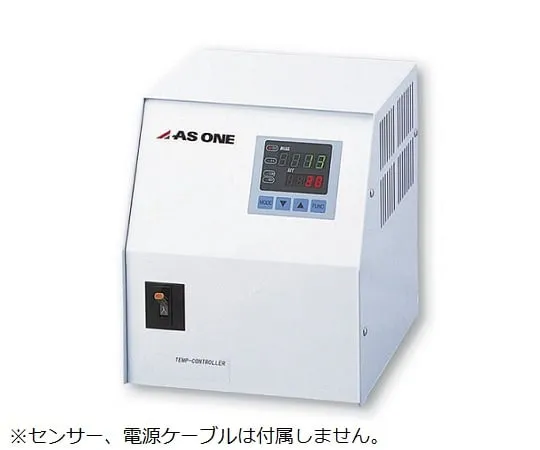

1-7582-01-56 Large capacity Temperature Controller with English Calibration Certificate TXN-25A
Product Description
Product Model: 1-7582-01-56Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-7582-01-56
Product Brand: AS ONE Corporation
Features
- As it is a large-capacity temperature regulator with a maximum capacity of 25 A, it can control large heaters and the like.
- Since it can be ***d both at 100 V and 200 V, it can be ***d widely in one unit.
- Three patterns of timer settings are possible.
- Both K thermocouple and Pt100Ω can be selectively ***d (default setting is K thermocouple).
Spec
- Temperature setting range (Pt sensor/K thermocouple): 0.0 ~ 200.0 degrees C/0 ~ 500 degrees C
- Temperature control system: PID control, SSR output
- Capacity: 100/200 AC, 25 A
- Timer Type: Auto Start, Auto Stop, SV Start
- Timer setting time: 1 minute to 99 hours 59 minutes
- Temperature display accuracy (when using a K thermocouple): +/- 2 degrees C or the indicated value +/- 0.3% + 1 digit, whichever is greater
- Output: Control Voltage Output/100/200 VAC 25 A, Alarm Contact Output/100/200 VAC 2.4 AmAX (Resistance Load)
- Power cord: None (connected to power terminals on rear terminal strip)
- Safety device: Overcurrent breaker
- Size: 190 x 239 x 220 mm
- *It doesn't come with a sensor. Choose the type and shape appropriate to your application (connector type is not allowed).
- *Power cord not included. Prepare according to your power supply voltage.
- This is the main body calibration. Minimum temperature, maximum temperature 2 points.
- *Calibration only without sensor.
- *If you would like to calibrate the unit and sensor together, please contact us separately.
