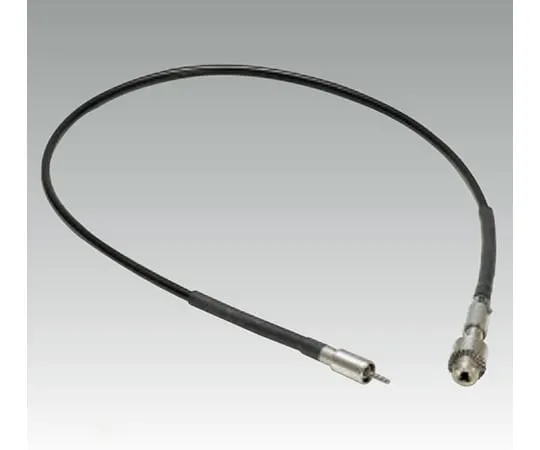

65-0583-10 Flexible stirrer FS-1
Product Description
Product Model: 65-0583-10Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 65-0583-10
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Stir the sample away from the main body
- Set the stirrer to move the stirring area without moving the stirrer.
- It can also be ***d to stir dangerous solutions in drafts.
- Heat does not affect the motor part by stirring a high-temperature solution.
Spec
- Performance:
- Maximum operating speed: 8000 rpm
- Maximum transmission torque: 1.47 N/m (15 kgf/cm) (linear condition)
- Minimum b*** radius: 150 mm (Transmission Torque Max. 0.78 N/m (8 kgf/cm))
- Chuck/Stirring Bar Outer Diameter: Drill Chuck/Phi. 1 ~ 8 mm
- Operating ambient temperature range: 0 ~ 60 degrees C
- Flexible cord part: length 1052 mm
- External Dimensions (mm)/Mass: Length: phi 12 x 1615 (maximum external diameter 37.1)/2.6 kg
- *For the ZZ series and B -200 G models, *** less than the maximum transmission torque.
- *It can not be ***d for the ZZ series with inverting function.
- Code: 123570
