Spec

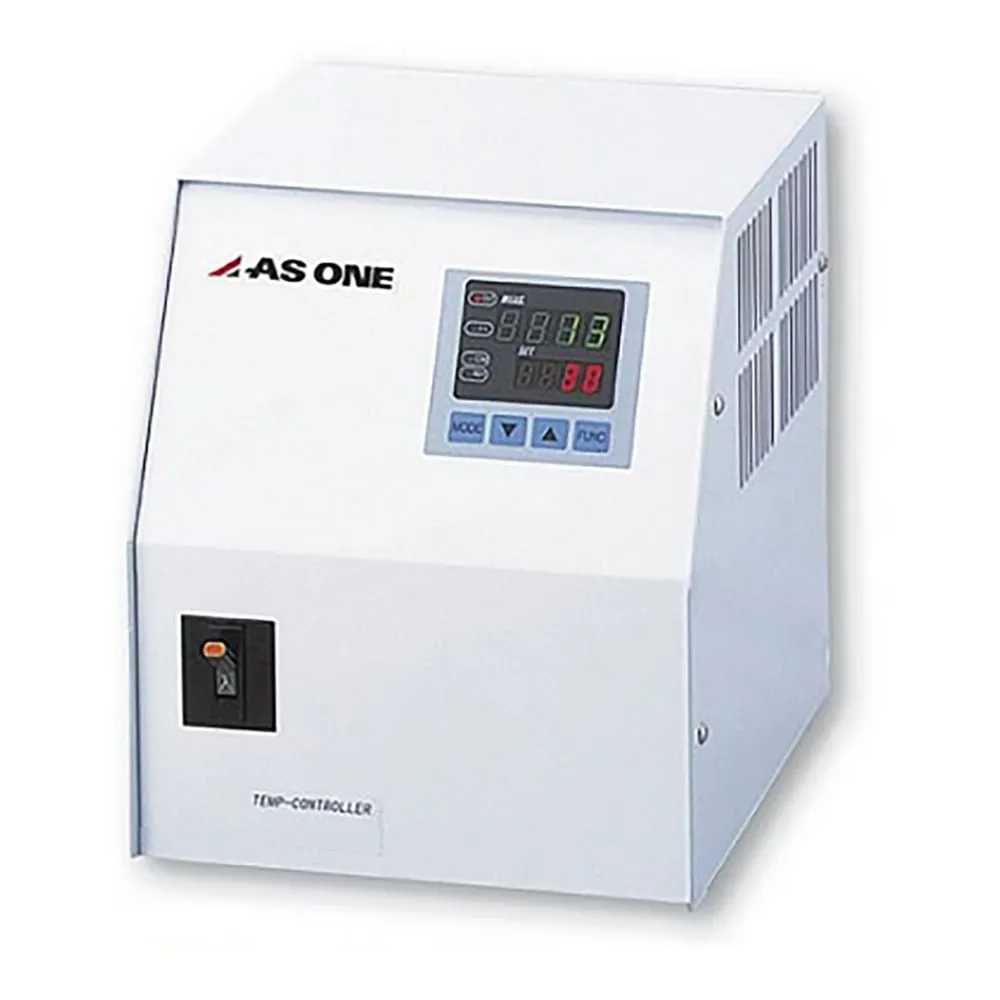

• Model number: TXN -25 A
• Temperature settings range (Pt Sensor/K class thermocouple): 0.0 to 200.0 ℃/0 to 500 ℃
• Temperature control method: PID control and SSR output
• Connected capacity: AC100V/200 V 25 A
• Timer Type: Auto start, Auto stop, SV start
• Timer settable time: 1 minute to 99 hours 59 minutes
• Temperature display accuracy (When using K class thermocouple): ±2 ℃ or ±0.3% + 1 digit, whichever is larger
• Output: Control voltage output/AC100V/200 V 25 A, Alarm contact output/AC100V/200 V 2.4 A
• Power cord : None (Connects to power supply terminal of rear terminal block)
• safety devices: overcurrent breakers
• Size: 190 x 239 x 220mm
• *Sensor is not included. Please choose the appropriate shape and Type (Connector type not allowed).
• *power cord is not included. Prepare according to your power supply voltage.
• Accessories: Calibration certificates
• *Products with calibration certificate is a service where equipment is calibrated and calibration certificate is issued at the time of shipment.
