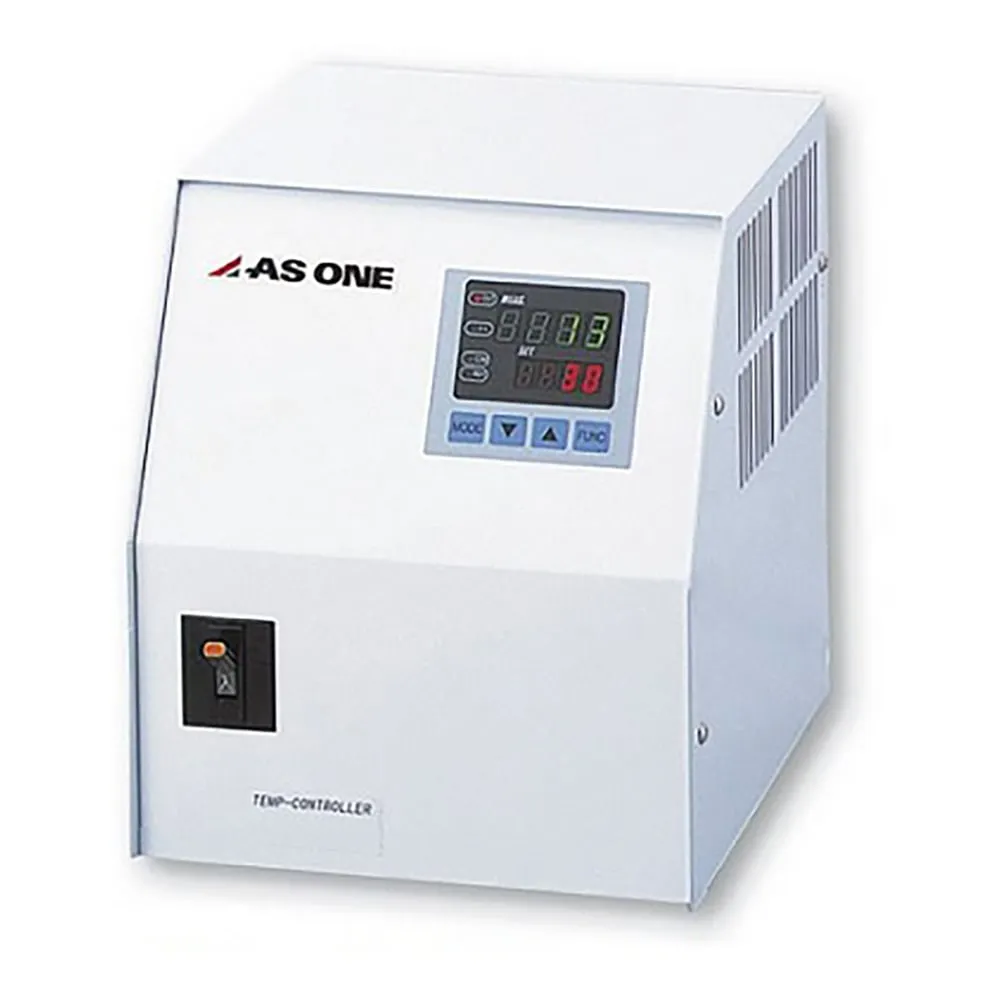

1-7582-01 Mass Temperature Controller TXN-25A
Product Description
Product Model: 1-7582-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-7582-01
Product Brand: AS ONE Corporation
Features
- As it is a large-capacity temperature regulator with a maximum capacity of 25 A, it can control large heaters and the like.
- Since it can be ***d both at 100 V and 200 V, it can be ***d widely in 1 unit.
- Three patterns of timer settings are possible.
- Both K thermocouple and Pt100Ω can be selectively ***d (default setting is K thermocouple).
Spec
- Model number: TXN-25A
- Temperature settings range (Pt sensor/K class thermocouple): 0.0 - 200.0℃/0 - 500℃.
- Temperature control system: PID control, SSR output
- Connection capacity: AC100/200V 25A
- Timer type: Autostart, auto-stop, SV start
- Timer setting available time: 1 minute - 99 hours 59 minutes
- Temperature indication accuracy: +/- 2℃ or +/- 0.3% + 1 digit, whichever is larger
- Output: Control voltage output/AC100/200V 25A, Alarm contact output/AC100/200V 2.4A
- Power cord: Non (connected to power terminal on the back terminal block)
- Safety device: Overcurrent breaker
- Size: 190 x 239 x 220mm
- *Sensor is not included in the package. Please select one of the shape, type according to the application (no connector type).
- *Power cord is not included. Please prepare according to ***d power voltage.
