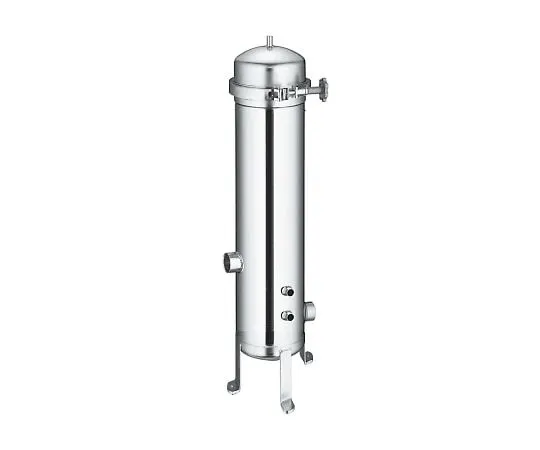

4-2480-04 Large Water Flow Filter Housing (For Multiple Pieces) CF3-20
Product Description
Product Model: 4-2480-04Product Brand: Environmental Te […]
Contact Us
Product Details
Product Model: 4-2480-04
Product Brand: Environmental Technology Service Co., Ltd.
Features
- Stainless steel filter housing for multiple applications.
- Can filter a large amount of liquid.
- It is resistant to chemicals.
Spec
- Specifications: Hydraulic Power for 20 inch 3 pieces
- Hydraulic power transmission (L/min): 24
- IN/OUT Shape/Diameter: 25 A (1 ")/Φ 25 mm (tube thread knife)
- material : SUS304
- Compatible Cartridge Size: 10 Inches (Approx. 250 mm), 20 Inches (Approx. 500 mm)
- Type Compatible Cartridges : Pleat Type , PPS Type , Bobbin Type , Activated Carbon (MX) (FDB) Type 5 Types (Both are flat surface packing-type filters.)
- external dimension : Φ 230 × 980 mm
- inner size : Φ 225 × 980 mm
- maximum working pressure : 0.8 MPa (Normal ***: not more than 0.5 MPa)
- Weight: about 25 kg
- *Filter is sold separately.
