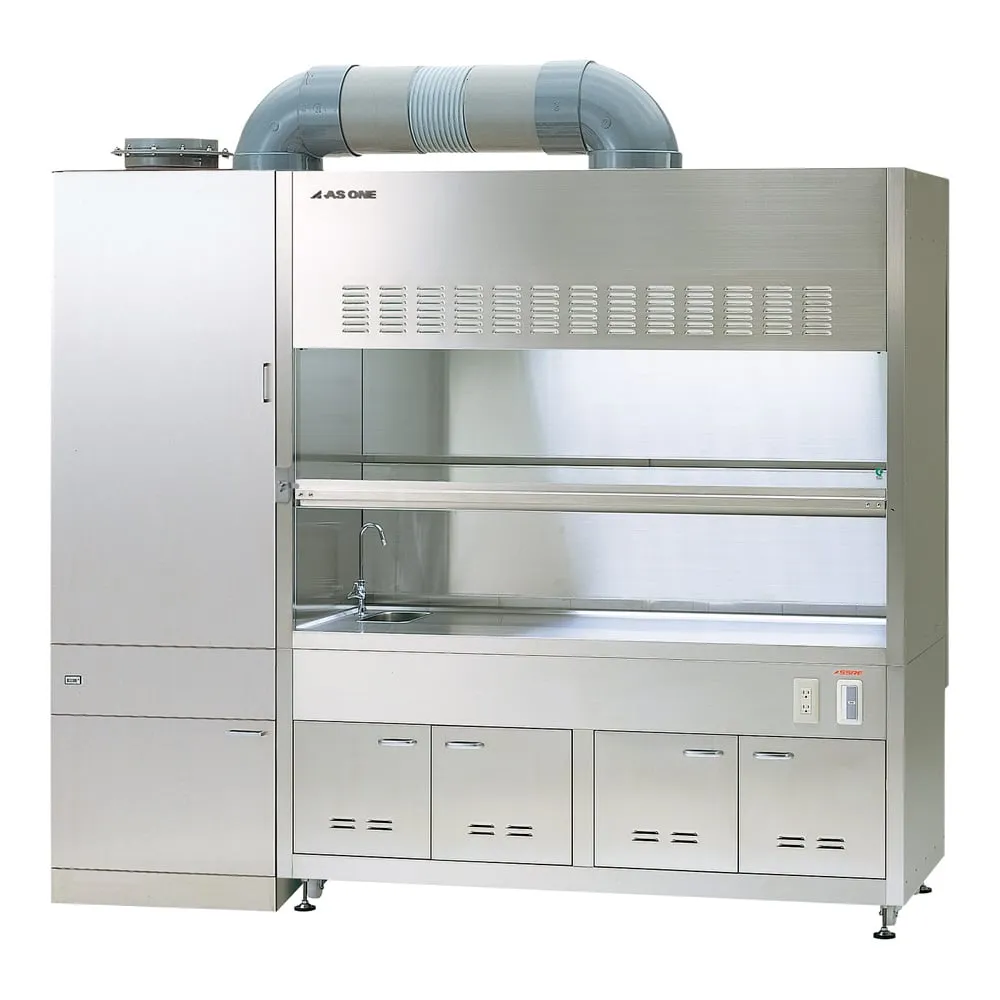

3-4576-01 ASSRE Fume Hood Stainless Steel, Dry Scrubber Horizontal Type 1900 x 820/750 x 2100 ASS-1200UC
model:
3-4576-01
category:
gasmonitors
Product Description
Product Model: 3-4576-01 Features Stainless steel type […]
Contact Us
Product Details
Product Model: 3-4576-01
Features
- Stainless steel type combined with dry scrubber (indoor type).
- The dry scrubber adsorbent ***s activated carbon stored in a bellmouth cartridge, so it can be easily replaced.
Spec
- Exteriors, interiors, work plane: Stainless steel (SUS304)
- Sash: Transparent strengthened glass (5mm-thick) Balance weights method with sash stopper mechanism
- Supply water plug: Gooseneck type (city water plug)
- Lighting devices: Using fluorescent lamps, with switch
-
- Surface speed (m/s) 350mm opening: 0.5
- Air volume (m3/min): 12
- Connection port (φmm): 200
- Duct diameter (φmm): 200
- Static pressure (Pa): 588
-
- Scrubber frontage (mm): 700
- Feed drainage: 1
- Fluorescent lamps (volume): 20W x 2
- Outlet AC 100V 15A double x 1 pieces included
- Included scrubber: Dry scrubber indoor installation type
- Outer dimension (mm): 1900 x 820/750 x 2100
- Inner dimension (mm): 1100 x 670 x 1100
- Weight (kg): 395
- Model number: ASS-1200UC
- *Transportation cost, carrying cost, installation cost, assembly cost, etc. are required separately. Please contact with us.
