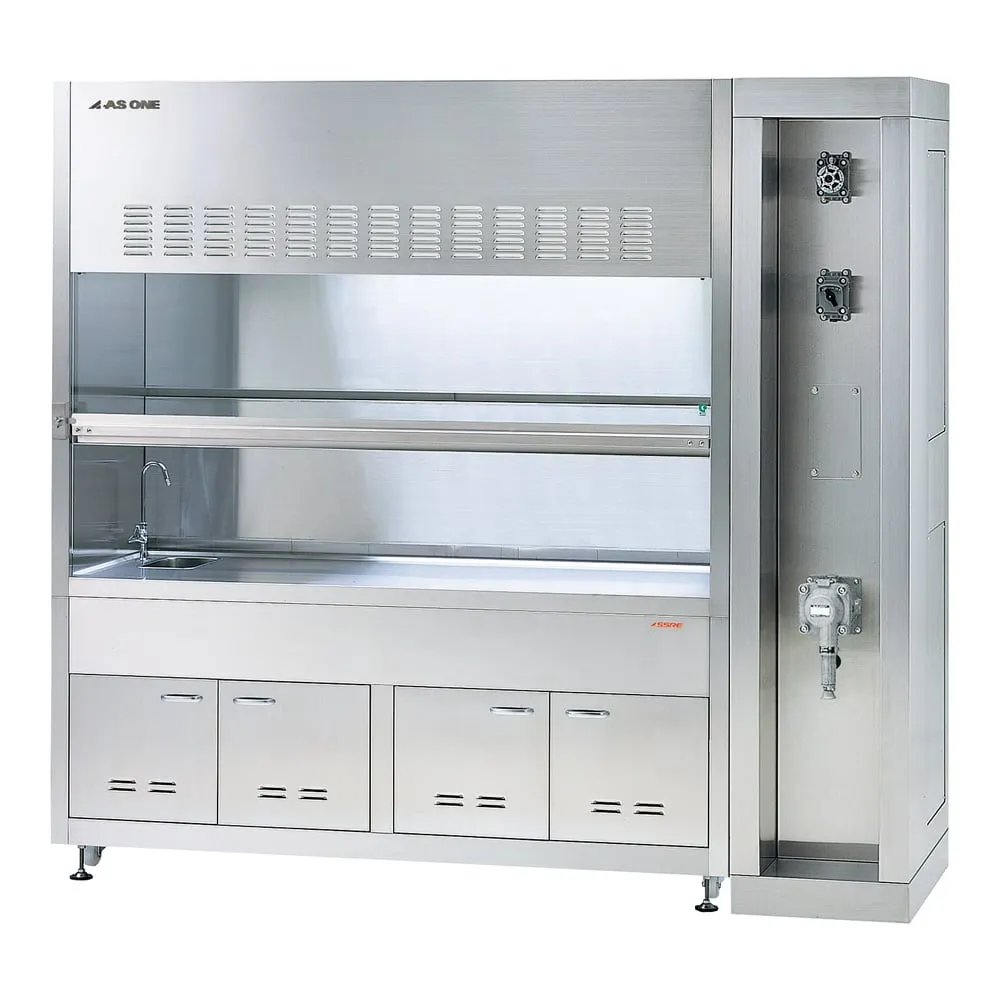

3-4575-01 ASSRE Fume Hood Stainless Steel, Explosion-Proof Type 1650 x 820/750 x 2150 ASSE-1200
model:
3-4575-01
category:
gasmonitors
Product Description
Product Model: 3-4575-01 Features Stainless steel type […]
Contact Us
Product Details
Product Model: 3-4575-01
Features
- Stainless steel type combined with explosion-proof unit.
- Power indicator lamps, lighting fluorescent lighting fixtures, lighting tumbler switches, and receptacles *** explosion-proof type (for indoor ***) with corresponding wiring.
Spec
- Exteriors, interiors, work plane, explosion-protection unit: Stainless steel (SUS304)
- Sash: Transparent strengthened glass (5mm thick) with balance weight type sash stopper *Sash can also be the net glass. Please contact with us.
-
- Surface speed (m/s) 350mm opening: 0.5
- Air volume (m3/min): 12
- Connection port (φmm): 200
- Duct diameter (φmm): 200
-
- Feed drainage amount: 1
- Power display lamp: with power display lamp
- Outlet Outlet 100V-15A x 1
- Lighting switch: Lighting switch x 1
- Fluorescent lamps (volume): 20W x 1
- Supply water plug: Gooseneck type (city water plug)
- Outer dimension (mm): 1650 x 820/750 x 2150
- Inner dimension (mm): 1100 x 670 x 1100
- Weight (kg): 300
- Model number: ASSE-1200
- *Transportation cost, carrying cost, installation cost, assembly cost, etc. are required separately. Please contact with us.
