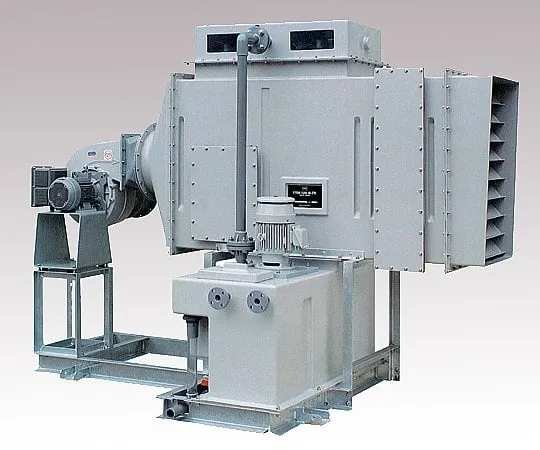

3-2142-01 Wet Scrubber for Outdoor, Horizontal Filling Type, Made Of FRP Pushing Type 35m3/Min HSD-5555-PS
model:
3-2142-01
category:
gasmonitors
Product Description
Product Model: 3-2142-01 Features Uses a full cone type […]
Contact Us
Product Details
Product Model: 3-2142-01
Features
- Uses a full cone type spray nozzle to remove gas more efficiently.
- A space-saving design that integrates a cleaning tower, a circulation tank, and an exhaust fan on a common base.
Spec
- Specification: Push-in type
- Processing air volume (m3/min): 35
- Model number: HSD-5555-PS
- External dimensions; width x depth x height (mm): 2470 x 1350 x 1554
- Air volume processed (m3/min): 35
- Circulation tank capacity (L): 250
- External static pressure (Pa): 350
- Operation weight (kg): 600
-
- Business duct diameter: 300A
- Static pressure (Pa): 700
- Power (kw): 1.5
-
- Water volume (L/min): 160
- Head (m): 6
- Power (kw): 0.75
- *Transportation cost, carrying cost, installation cost, assembly cost, etc. are required separately. Please contact with us. *Switchboard is not included in the package. Please contact us.
