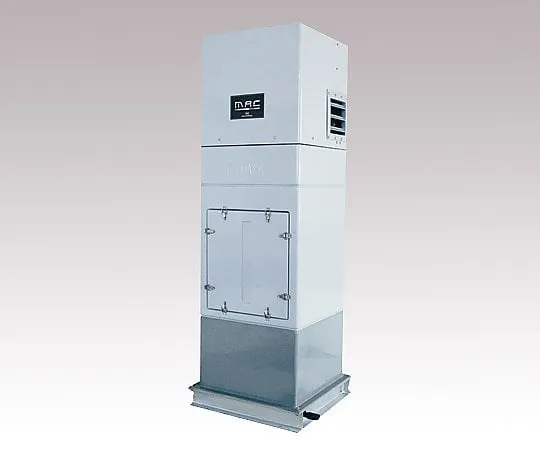

3-2141-01 Activated Charcoal Adsorption Tower Cartridge Type 25m3/Min MAC-25
model:
3-2141-01
category:
gasmonitors
Product Description
Product Model: 3-2141-01 Features Since an exhaust fan […]
Contact Us
Product Details
Product Model: 3-2141-01
Features
- Since an exhaust fan is mounted on the upper part of the suction tower, it can be installed even in narrow places.
- Cartridge type activated carbon is ***d, so it can be easily replaced.
Spec
- Maximum processing air volume: 25m3/min
- Fan: 3φ200V x 1.5kW x 1100Pa
- Pressure loss: 10m3/min/100Pa, 25m3/min/600Pa
- Body material: FRP
- Accessories: Cartridge type activated charcoal (general) x 50 (25 x 2 stages, 40kg)
- Size (mm): 680 x 680 x 1997
- Weight (kg): 150
- Model number: MAC-25
- *Transportation cost, carrying cost, installation cost, assembly cost, etc. are required separately. Please contact with us. *Switchboard is not included in the package. Please contact us.
