gasmonitors

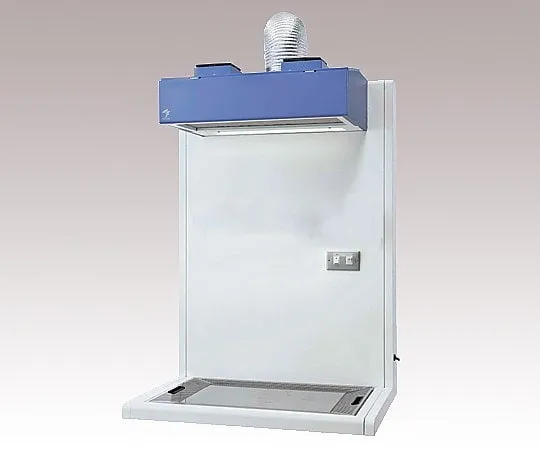

3-2135-01 Push-Pull Ventilation System 800 x 610 x 1130 LP-60TU
model:
3-2135-01
category:
gasmonitors
Product Description
Product Model: 3-2135-01 Features Push-pull laminar flo […]
Contact Us
Product Details
Product Model: 3-2135-01
Features
- Push-pull laminar flow control quickly exhausts harmful gas on the table.
- The drain receiver under the work table can be easily removed and washed with water.
Spec
- Material: Exterior/steel (urethane paint baking coating), Work plane/stainless steel (SUS304)
- Work table dimensions: 500 x 320mm
- Air supply air volume: 2.6m3/min
- Blow-off wind speed: 0.4m/s
- Exhaust port diameter: φ150mm
- Exhaust fan unit air volume: 6.5m3/min
- Lighting devices: Fluorescent lamp 20W x 1 lamp
- Weight: Approx 48kg
- Power supply: AC100V 50/60Hz
- Specification: Body only
- Outer dimension (mm): 800 x 610 x 1130
- Model number: LP-60TU
- *Transportation cost, carrying cost, installation cost, assembly cost, etc. are required separately. Please contact with us. *Exhaust fan unit doesn't come with the LP-60TU.
