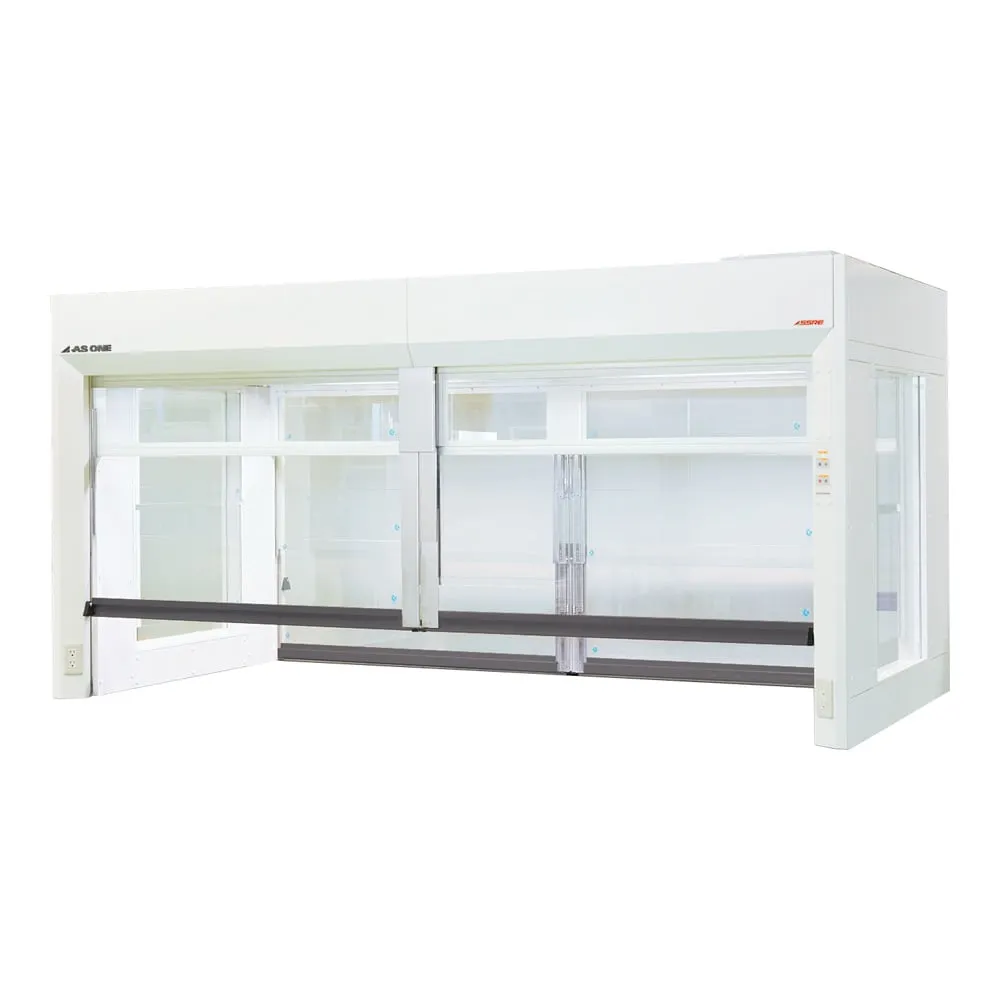

3-2024-01 Laboratory Bench Hood Non-Pole Type, Made Of Steel 2380 x 1480 x 1600 NON-24SB
model:
3-2024-01
category:
gasmonitors
Product Description
Product Model: 3-2024-01 Features Non-pole type with no […]
Contact Us
Product Details
Product Model: 3-2024-01
Features
- Non-pole type with no columns left in the middle of the front sash, so the hood is wide and the work in the center can be done smoothly.
- Since a side baffle mechanism is provided on the inner surface of the hood, it can efficiently exhaust gas with heavy specific gravity.
- Since both sides are glass windows, the inside of the hood has excellent visibility.
- The front sash is 2-piece interlocking and lifting type, so even if the door is fully opened, the sash does not protrude to the upper part of the main body and is not subject to restrictions such as ceiling height.
Spec
- Material: Exterior/Steel (chemical resistance baking coating), Interior/Clean panel C-008, Front door/Transparent strengthened glass (5mm thickness) balance weights method
- Power supply: AC100V 50/60Hz
- Accessories: Fluorescent lamps (for 20W 2 lamps x 4)
- Outer dimension (mm): 2380 x 1480 x 1600
- Air volume (m3/min): 28
- Connection port (φmm): 200 x 2
- Exhaust connection port Size (φmm): 300
- Weight (kg): 380
- Model number: NON-24SB
- *Transportation cost, carrying cost, installation cost, assembly cost, etc. are required separately. Please contact with us. *Air volume is the recomm***ed value of the case in which controlled air velocity with the front door (1 or 2 sheet) opening of 400mm is set at 0.5m/s.
