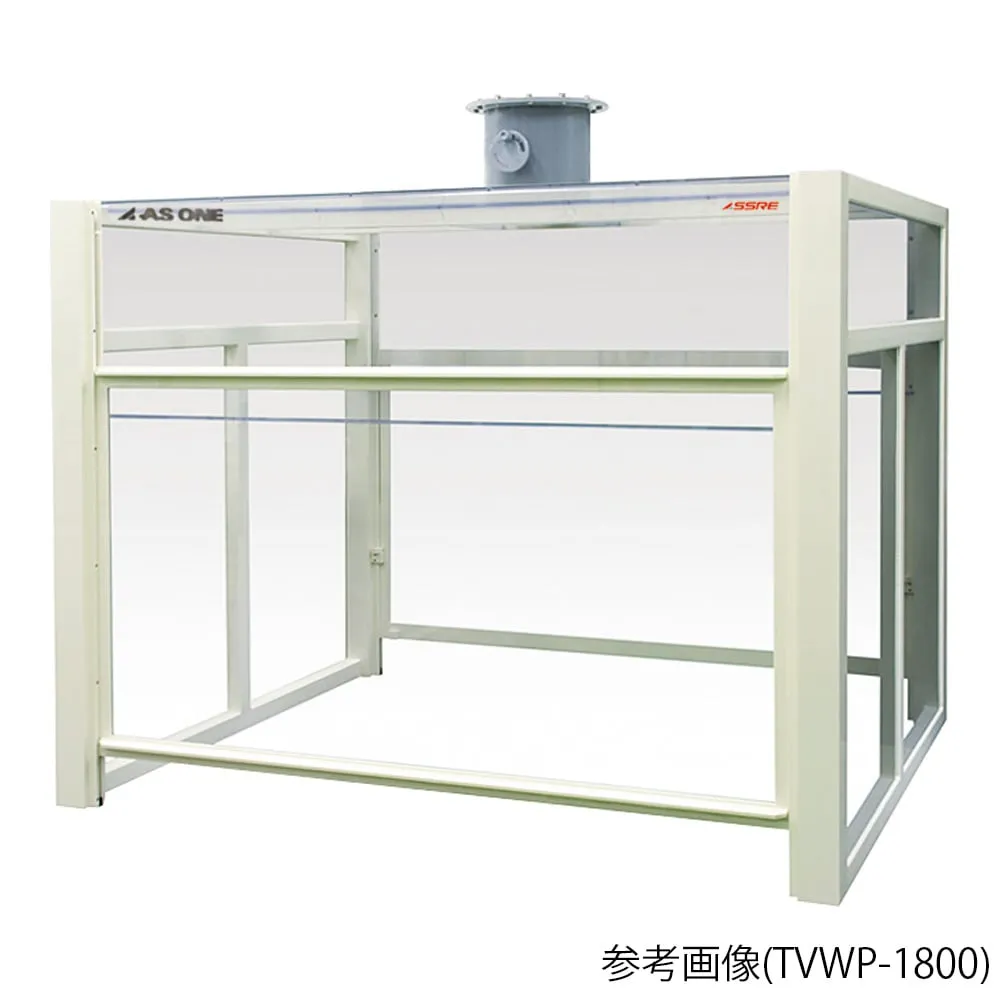

3-1310-01 Laboratory Bench Hood Double-Sided Type, Made Of PVC 1800 x 1500 x 1400 TVWP-1800
model:
3-1310-01
category:
gasmonitors
Product Description
Product Model: 3-1310-01 Features Equipment and equipme […]
Contact Us
Product Details
Product Model: 3-1310-01
Features
- Equipment and equipment installed on the central laboratory table. This hood is ***d to exhaust small amounts of harmful gases.
- Since the body is made of PVC, it is suitable for acid gas and alkaline gas exhaust.
- Beca*** the surroundings are transparent, the field of view is wide and it is easy to observe inside.
Spec
- Framework: PVC (vinyl chloride resin) square pipe
- Front and back: 4mm-thick transparent rigid PVC (vinyl chloride resin) balance weight method
- Side: 4-mm thick transparent rigid PVC (vinyl chloride resin) fixed window
- Ceiling plane: Transparent hard PVC (vinyl chloride resin)
- Exhaust duct: Rigid PVC (vinyl chloride resin) volume damper included
- Outer dimension (mm): 1800 x 1500 x 1400
- Front door (sheet): 1
- Air volume (m3/min): 22
- Exhaust connection port size and number (φmm x number): 250 x 1
- Exhaust connection port Size (φmm): 250
- Model number: TVWP-1800
- *Transportation cost, carrying cost, installation cost, assembly cost, etc. are required separately. Please contact with us. *Air volume is the recomm***ed value of the case in which controlled air velocity with the front door (1 or 2 sheet) opening of 450mm is set at 0.5m/s.
