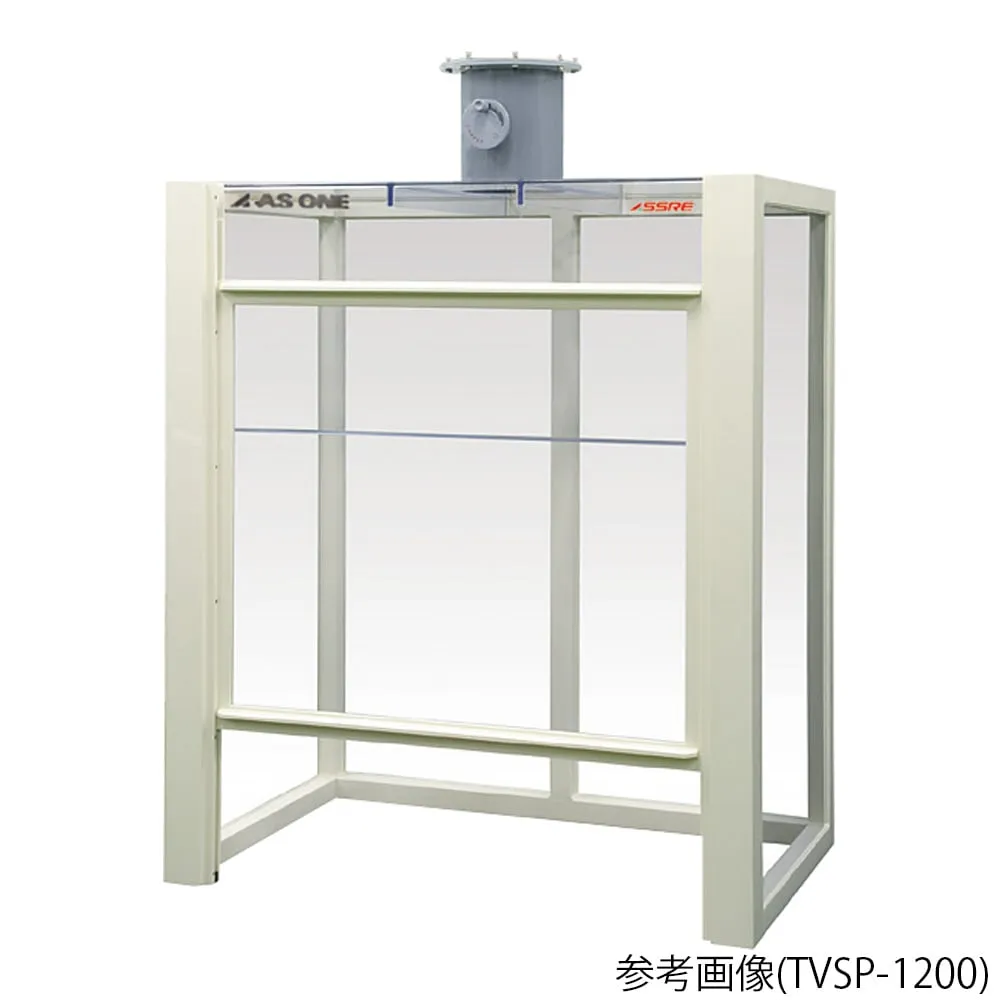

3-1309-01 Laboratory Bench Hood Single-Sided Type, Made Of PVC 1200 x 750 x 1400 TVSP-1200
model:
3-1309-01
category:
gasmonitors
Product Description
Product Model: 3-1309-01 Features Equipment and equipme […]
Contact Us
Product Details
Product Model: 3-1309-01
Features
- Equipment and equipment installed on a laboratory bench. This hood is ***d to exhaust small amounts of harmful gases.
- Since the body is made of PVC, it is suitable for acid gas and alkaline gas exhaust.
- Beca*** the surroundings are transparent, the field of view is wide and it is easy to observe inside.
Spec
- Framework: Hard PVC (vinyl chloride resin) Square pipe
- Front: 4mm-thick transparent rigid PVC (vinyl chloride resin) balance weight method
- Side and back: 4-mm thick transparent rigid PVC (vinyl chloride resin) fixed window
- Ceiling plane: Transparent hard PVC (vinyl chloride resin)
- Exhaust duct: Rigid PVC (vinyl chloride resin) volume damper included
- Outer dimension (mm): 1200 x 750 x 1400
- Front door (sheet): 1
- Air volume (m3/min): 14
- Exhaust connection port Size (φmm): 200
- Exhaust connection port Size (φmm): 200
- Model number: TVSP-1200
- *Transportation cost, carrying cost, installation cost, assembly cost, etc. are required separately. Please contact with us. *Air volume is the recomm***ed value when the controlled air velocity with 450mm front door opening is set at 0.5 m/s.
