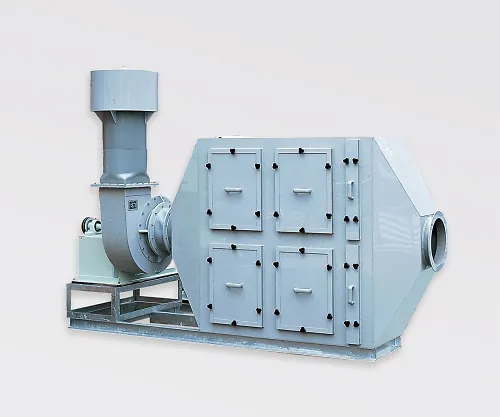

3-1055-01 Dry Scrubber for Outdoor, Tensile Type PVC (Vinyl Chloride Resin) 20m3/Min PKF-25Y2
model:
3-1055-01
category:
gasmonitors
Product Description
Product Model: 3-1055-01 Features This device absorbs a […]
Contact Us
Product Details
Product Model: 3-1055-01
Features
- This device absorbs and removes malodorous gases such as organic solvents from activated carbon filters, thereby reducing air pollution around buildings.
- The activated carbon adsorbent is stored in a bellmouth type cartridge and incorporated into the filter panel, so it is easy to remove and replace.
Spec
- Body material: PVC (vinyl chloride resin)
- Model number: PKF-25Y2
- Air volume processed (m3/min): 20
- Business duct (φmm): 250
- Body static pressure (Pa): 400
- Body size (W x D x H; mm): 2156 x 850 x 700
-
- Unit: UC25 x 2
- Activated charcoal weight (kg): 40
-
- Type: NO.200T
- Motor (kW): 1.5
- Maximum static pressure (Pa): 800
-
- Fan (including motor): 90
- Scrubber body: Approx 110
- *Transportation cost, carrying cost, installation cost, assembly cost, etc. are required separately. Please contact with us. *Switchboard is not included in the package. Please contact us.
