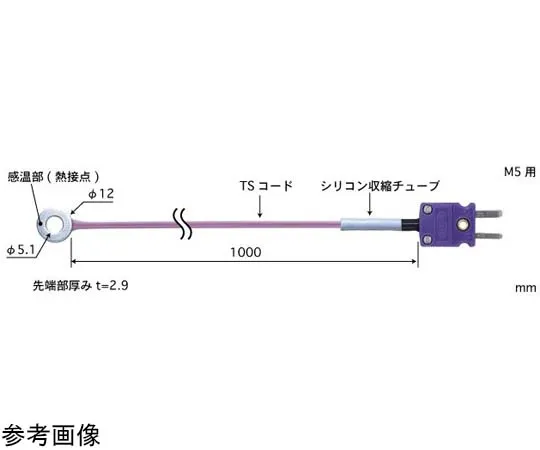

65-3531-44 Screw Temp Sensor SC Series -50~150°C Screw Diameter: M5 2.3φ E Type SC-51E-TS1-ANP
Product Description
Product Model: 65-3531-44Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3531-44
Product Brand: ANRITSU METER CO., LTD.
Features
- The SC series is a temperature sensor with a screw fastening structure on the tip.
- [Application] Temperature control and temperature measurement of metal plate by heating using cartridge heater, etc.
Spec
- Material: Screw Fastener Material/Stainless Steel
- Operating temperature range (°C): -50~150
- Tolerance at – 40~150 deg. C (deg. C): ±3.5
- Response Time (sec): 5
- Corresponding Screw Diameter: M5
- Thermocouple Type: E Type
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Mini Plug
