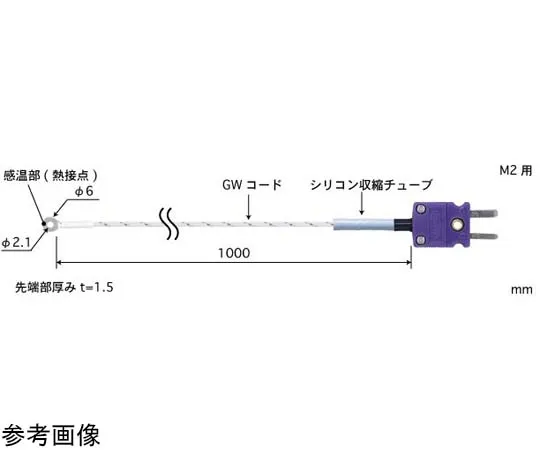

65-3531-38 Screw Temp Sensor SC Series -50~300°C Screw Diameter: M2 1.2 x 1.7 mm E Type SC-22E-GW1-ANP
Product Description
Product Model: 65-3531-38Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3531-38
Product Brand: ANRITSU METER CO., LTD.
Features
- The SC series is a temperature sensor with a screw fastening structure on the tip.
- [Application] Temperature control and temperature measurement of metal plate by heating using cartridge heater, etc.
Spec
- Material: Screw Fastener Material/Stainless Steel
- Operating temperature range (°C): -50~300
- Tolerance at – 40~150 deg. C (deg. C): ±3.5
- Response Time (sec): 5
- Corresponding Screw Diameter: M2
- Thermocouple Type: E Type
- Cord length (m): 1
- Cord Outer Diameter (mm): 1.2 x 1.7
- Coating Material: Glass Fiber
- Heat-resistant Temperature (°C): 300
- Plug Shape: Mini Plug
