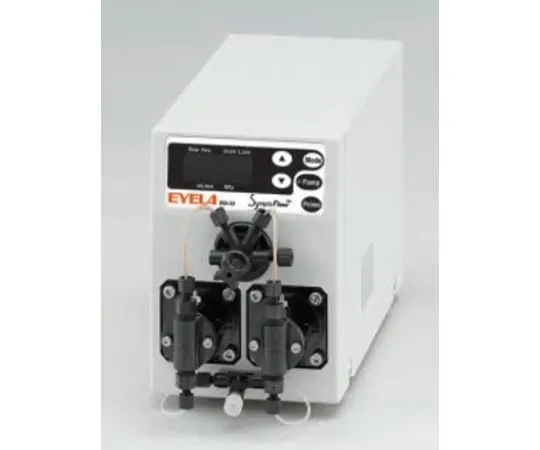

Spec

• Type: Analysis
• Performance:
• Flow rate adjustment range: 0.001 ~ 9.999 mL/min
• Flow rate stability: +/- 0.3%
• Maximum Discharge Pressure: 20 MPa
• Show:
• Flow rate setting/display: Digital setting/4-digit digital display with UP/DOWN keys
• Pressure display: Digital display (display accuracy +/- 5%)
• Features:
• Safety Function: Pressure Upper/Lower Limiter
• Included features: Self-learning function (active mode), flow compensation
• Contact input/output/communication: input: PUMP ON-OFF output: error output/communication: RS 232 C, RS -485 (between pumps)
• Standard:
• Wetted part material: (Common) Sapphire, Ruby, PTFE, PCTFE, PFA, ETFE, Carlets, HDPE, PEEK
• Plunger diameter (mm): phi 3.2
• External Dimensions (mm)/Mass: 105 W x 240 D x 144 H
• Mass: About 5.6 kg
• Power input: 2 A, 200 VA
• Power supply voltage: 100 ~ 240 VAC 50/60 Hz
• *It is not possible to s*** fluid for a long time by setting the maximum flow rate.
• *The maximum discharge pressure is the instantaneous maximum pressure and does not mean the normal maximum discharge pressure at the maximum flow rate.
• *The included pulse-flow control is activated at 5 MPa or less with rotation correction based on cam shape.
• *Constant pressure feeding is a function to adjust the flow rate to the set pressure. The average value of the measured pressure is ***d and no pulse flow control is performed.
• Code: 278550
