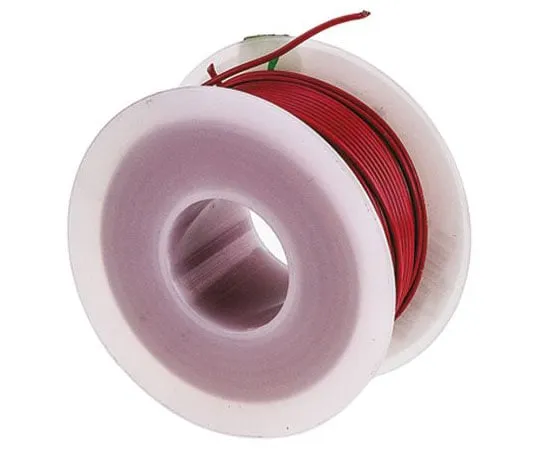

63-4707-93 Alpha Wire Premium Series Red Hook Up Wire UL1061, 0.33 mm², 300 V 22 AWG, 30m 3251 RD005
Electronic/Electrical Parts and Controll Equipments

63-4707-93 Alpha Wire Premium Series Red Hook Up Wire UL1061, 0.33 mm², 300 V 22 AWG, 30m 3251 RD005

model: 63-4707-93
brand: Alpha Wire

Product Description

Product Model: 63-4707-93Product Brand: Alpha Wire Feat […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4707-93
Product Brand: Alpha Wire

Features

  • Alpha Wire UL1061 Hook-up Wire. Alpha Wire hook-up wire that is UL1061 listed and CSA AWM I A/B FT1 certified. The wire comprises stranded or solid tinned copper conductor with semi-rigid PVC insulation, allowing the wire to stay functional through temperatures of + 80°C. These properties also give the wire the ability to withstand abrasion and have a high resistance to certain substances such as oils, solvents and chemical. The hook-up wire is available in a large range of colours and is recomm***ed for internal wiring and wiring harness assemblies.

Spec

  • Quantity:1roll(30m)
  • Cross Sectional Area : 0.33 mm²
  • Sheath Colour : Red
  • American Wire Gauge : 22 AWG
  • Core Strands : 7/0.25 mm
  • Insulation Material : PVC
  • Outer Diameter : 1.27mm
  • Length : 30m
  • Voltage Rating : 300 V
  • Conductor Material : Tinned Copper
  • Wire Style : UL1061
  • Maximum Operating Temperature : +80°C
  • Shield Type : Unshielded
  • Series : Premium
  • Standards Met : UL Listed
  • CODE No.:168-0764
