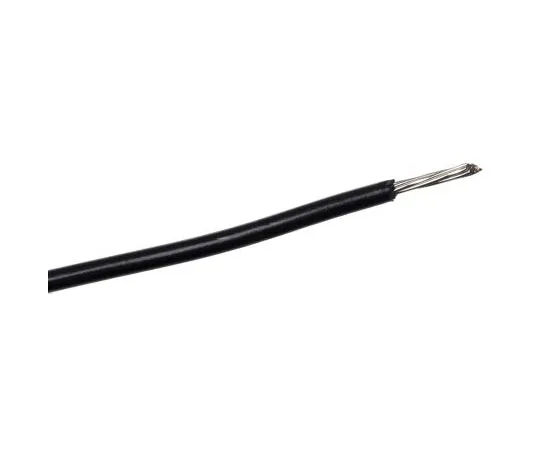

63-4707-92 Alpha Wire Premium Series Black Hook Up Wire UL1061, 0.33 mm², 300 V 22 AWG, 30m 3251 BK005
Product Description
Product Model: 63-4707-92Product Brand: Alpha Wire Feat […]
Contact Us
Product Details
Product Model: 63-4707-92
Product Brand: Alpha Wire
Features
- Alpha Wire UL1061 Hook-up Wire. Alpha Wire hook-up wire that is UL1061 listed and CSA AWM I A/B FT1 certified. The wire comprises stranded or solid tinned copper conductor with semi-rigid PVC insulation, allowing the wire to stay functional through temperatures of + 80°C. These properties also give the wire the ability to withstand abrasion and have a high resistance to certain substances such as oils, solvents and chemical. The hook-up wire is available in a large range of colours and is recomm***ed for internal wiring and wiring harness assemblies.
Spec
- Quantity:1roll(30m)
- Cross Sectional Area : 0.33 mm²
- Sheath Colour : Black
- American Wire Gauge : 22 AWG
- Core Strands : 7/0.25 mm
- Insulation Material : PVC
- Outer Diameter : 1.27mm
- Length : 30m
- Voltage Rating : 300 V
- Conductor Material : Tinned Copper
- Wire Style : UL1061
- Maximum Operating Temperature : +80°C
- Shield Type : Unshielded
- Series : Premium
- Insulation Wall Thickness : 0.3mm
- CODE No.:168-0758
