64-0880-09 19 ” Server Rack Outlet 200 V 20 A TAP-SV22012C19
Product Description
Product Model: 64-0880-09Product Brand: SANWA SUPPLY IN […]
Contact Us
Product Details
Product Model: 64-0880-09
Product Brand: SANWA SUPPLY INC.
Features
- Slim type outlet for 19 inch server rack 200 V
- 200 V outlet that can be easily attached to 19 inch server rack. Since there is a mounting hole in the main body of the tap, it can be mounted directly with screws. * Mounting screws are not included.
- Can be attached to the mounting frame with optional L-shaped mounting bracket * L-shaped mounting bracket is sold separately.
- An energized LED lamp is provided as standard.
- Power cord (3m) and plug are included as standard.
Spec
- rating capacity: 20 amps, 250 volts

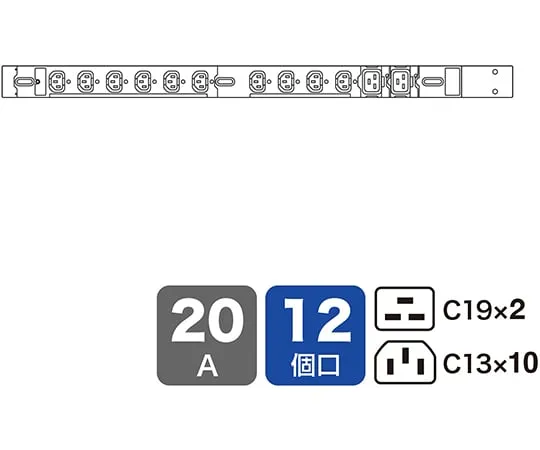

- Drive: IECC 13 x 10, Port C 19 x 2 inlets
- Plug: NEMAL6 -20 P
- Cord Length: 3 m
- Code Type: VCT (3 cores) 3.5 mm2
- Country of origin: Japan environment ***d condition
- Ambient Temperature: -5 ° C to 40 ° C (However, the 24 hour average shall not exceed 35 deg.)
- Ambient humidity: 85% or less (Do not freeze or dew).
- Elevation: 2000 m or less
- environment ***d: No excess water vapour, oil steam, smoke, corrosive gases, etc. An environment that is not subject to abnormal vibration or impact.
