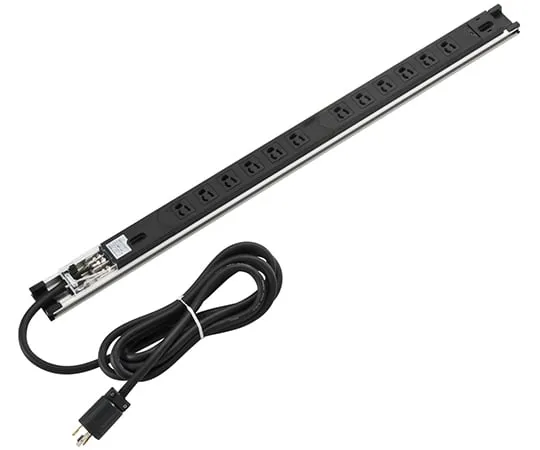

64-0868-31 19 ” Server Rack Outlet 20 A TAP-SV2012
Product Description
Product Model: 64-0868-31Product Brand: SANWA SUPPLY IN […]
Contact Us
Product Details
Product Model: 64-0868-31
Product Brand: SANWA SUPPLY INC.
Features
- Easy to mount to 19 inch server rack with 3 mounting methods
- Easy to mount to 19 inch server rack with 3 mounting methods. ① Attached mounting bracket can be attached to side frame (2) Since there is a mounting hole in the main body of the tap, it can be directly attached with screws. * Mounting screws are not included. ③ Can be attached to the mounting frame with optional L-shaped mounting bracket * L-shaped mounting bracket is sold separately.
- * The included metal fittings are only 2 for the slide rail of the tap body.
- An energized LED lamp is provided as standard.
- With the *** of the pull-out stop type insertion port, unexpected pull-out is prevented.
- The bottom and sides of the tap body are made of lightweight and sturdy aluminum.
- The terminal block has a transparent cover that lets you see the connection status at a glance.
- Power cord (3m) and plug are included as standard.
Spec
- rating capacity : 20A 125V
- Insertion Port: 3P Stopper, 12 pcs
- Plug: 3P Hook Plug (NEMAL5 -20)
- Cord Length: 3 m
- Code Type: VCT 3.5 (3 cores)
- Crimp Terminal: Round Crimp Terminal R2 -5 (JISC 2805 Equivalent)
- Accessories: Body metal bracket for Slide Rail (2 pieces)
- Country of origin: Japan environment ***d condition
- Ambient Temperature: -5 ° C to 40 ° C (However, the 24 hour average shall not exceed 35 deg.)
- Ambient humidity: 85% or less (Do not freeze or dew).
- Elevation: 2000 m or less
- environment ***d: No excess water vapour, oil steam, smoke, corrosive gases, etc. An environment that is not subject to abnormal vibration or impact.
