65-3531-02 Tape Type Multi-Purpose Temperature Sensor ST Series -50~210°C 8 sec Flat 150 mm E Type ST-42E-015-TS1-ANP
Product Description
Product Model: 65-3531-02Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3531-02
Product Brand: ANRITSU METER CO., LTD.
Features
- The ST Series is an ultra-thin flexible tape-shaped multi-purpose temperature sensor.
- [Application] Temperature measurement in vehicle interior temperature distribution experiments, etc.
- Temperature control and temperature measurement of the substrate during reflow
- Temperature control and temperature measurement during the manufacture of liquid crystal displays (LCD)
- Temperature measurement in the activation process of cells such as lithium-ion batteries
- Temperature measurement during nailing test of lithium-ion battery
- Temperature measurement of professional irons, etc.

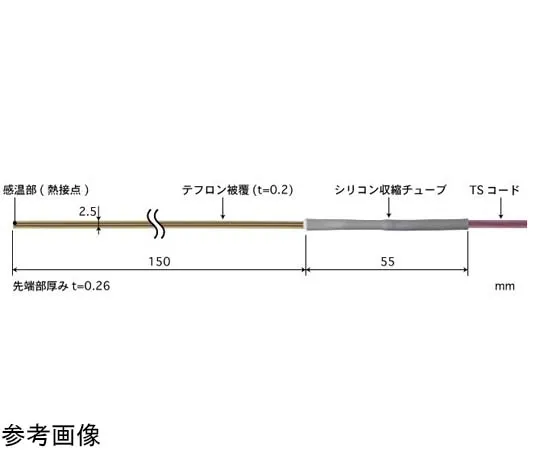

Spec
- Operating temperature range (°C): -50~210
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 8
- Tape Width: Narrow Type
- Tip Shape: Flat
- Coating Shape: Teflon Coating/All Coating
- Thermocouple Type: E Type
- Tape length (mm): 150
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Mini Plug
