65-3530-91 Tape Type Multi-Purpose Temperature Sensor ST Series -50~400°C 8 sec Flat 150 mm E Type ST-24E-015-GW1-ANP
Product Description
Product Model: 65-3530-91Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3530-91
Product Brand: ANRITSU METER CO., LTD.
Features

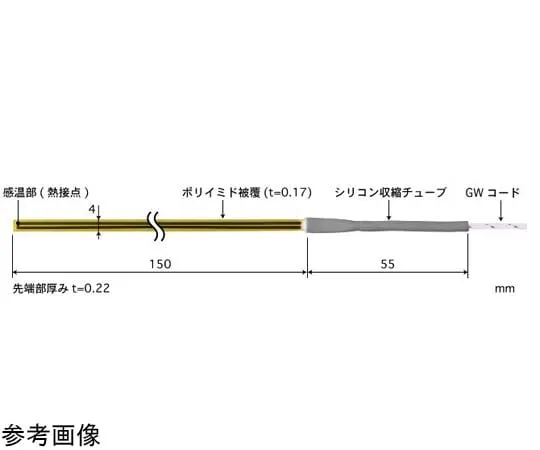

- The ST Series is an ultra-thin flexible tape-shaped multi-purpose temperature sensor.
- [Application] Temperature measurement in vehicle interior temperature distribution experiments, etc.
- Temperature control and temperature measurement of the substrate during reflow
- Temperature control and temperature measurement during the manufacture of liquid crystal displays (LCD)
- Temperature measurement in the activation process of cells such as lithium-ion batteries
- Temperature measurement during nailing test of lithium-ion battery
- Temperature measurement of professional irons, etc.
Spec
- Operating Temperature Range: Tape Length 150 mm or Less -50~400°C, Tape Length 150 mm or More -50~350°C
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 8
- tape width: standard type
- Tip Shape: Flat
- Coating Shape: Polyimide Coating/All Coating
- Thermocouple Type: E Type
- Tape length (mm): 150
- Cord length (m): 1
- Cord Outer Diameter (mm): 1.2 x 1.7
- Coating Material: Glass Fiber
- Heat-resistant Temperature (°C): 300
- Plug Shape: Mini Plug
Related product recommendations
You may also be interested in the following products
toner
67-8025-28 Immersion type oximeter (with traceability certificate) OX-08
model: 67-8025-28
brand: RIKEN KEIKI Co., Ltd.
toner

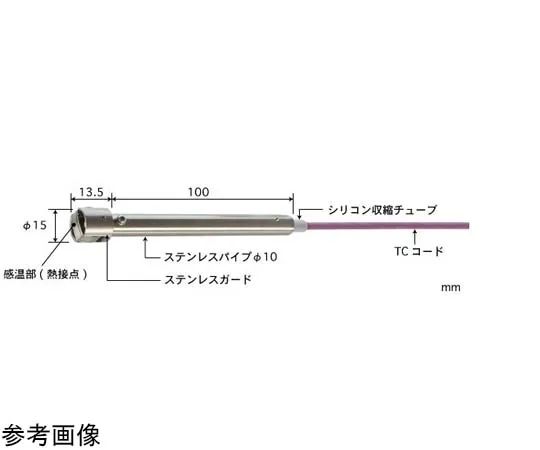

65-3532-75 ［Out of stock］Temperature Sensor for Static Surface Type A Series with ISO Document Set -50~500°C Straight, Parallel 100 mm No Grip Type E A-231E-01-0-TC1-W
