65-3530-84 Tape Type Multi-Purpose Temperature Sensor ST Series -50~210°C 2 sec, 100 mm K Type ST-11K-010-TS1-ANP
Product Description
Product Model: 65-3530-84Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3530-84
Product Brand: ANRITSU METER CO., LTD.
Features
- The ST Series is an ultra-thin flexible tape-shaped multi-purpose temperature sensor.
- [Application] Temperature measurement in vehicle interior temperature distribution experiments, etc.
- Temperature control and temperature measurement of the substrate during reflow
- Temperature control and temperature measurement during the manufacture of liquid crystal displays (LCD)
- Temperature measurement in the activation process of cells such as lithium-ion batteries
- Temperature measurement during nailing test of lithium-ion battery
- Temperature measurement of professional irons, etc.
Spec
- Operating temperature range (°C): -50~210
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 2

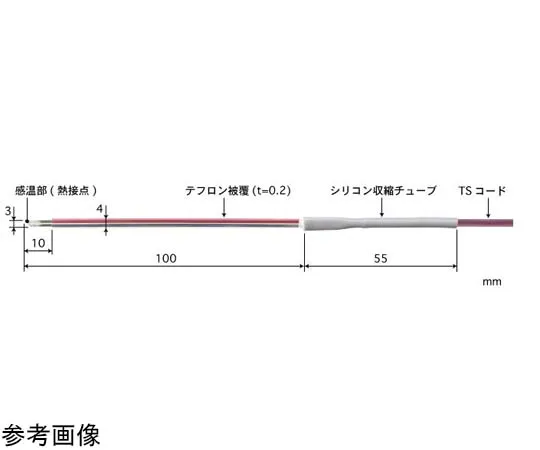

- tape width: standard type
- Tip Shape: Spur
- Coating Shape: Teflon Coating/Tip Exposure
- Thermocouple Type: K Type
- Tape length (mm): 100
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Mini Plug
