65-3530-75 Puncture Protection Tube Temperature Sensor Model 520 -200~300°C Response Speed (sec): 1.5 E Type 520E-TC1-ASP
Product Description
Product Model: 65-3530-75Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3530-75
Product Brand: ANRITSU METER CO., LTD.
Features

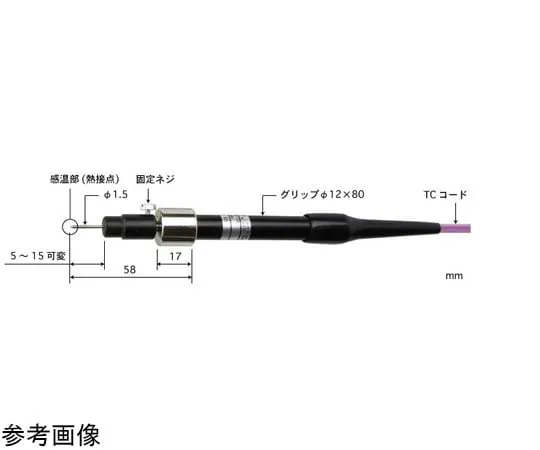

- Model 520 is a piercing protective tube type temperature sensor suitable for temperature measurement of semi-solid objects, the length of the protective tube which is the temperature measuring part can be changed by 5~15 mm.
- [Application] Temperature control and temperature measurement of coffee beans during roasting
Spec
- Material: Grip Material/Black Phenol Resin
- Operating temperature range (°C): -200~300
- Tolerance at 0~300 deg. C (deg. C): ±2.5
- Response Time (sec): 1.5
- Durability: 1 year or more
- Thermocouple Type: E Type
- Code Type: Standard Code
- Cord length (m): 1
- Plug Shape: Standard Plug
