65-3530-69 Sheath Thermocouple Temperature Sensor Shape: Sleeve Type Outer Diameter 1.6φ 500 mm No Teflon Coating E-Type B1.6-E-J2-M1-L500-TC1-ASP
Product Description
Product Model: 65-3530-69Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3530-69
Product Brand: ANRITSU METER CO., LTD.
Features
- A sheath type sensor (sheath thermocouple) is an internal temperature sensor that can hold the sheath in a bent state (like a wire).
- Ideal for temperature control of liquid temperature, air temperature and furnace temperature
- [Application] Atmospheric temperature control and temperature measurement in an electric furnace

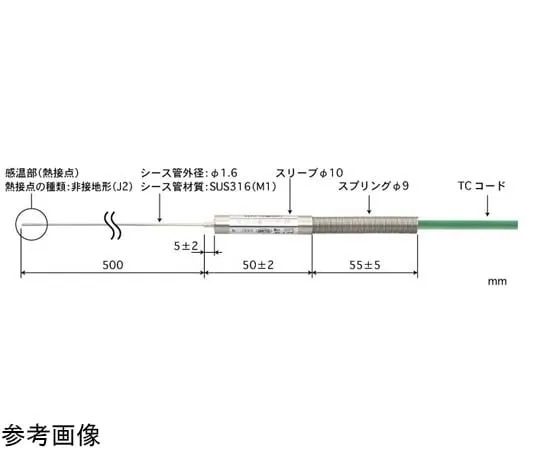

Spec
- Shape: Sleeve Type
- With or without Teflon coating: None
- Sheath Outer Diameter (φmm): 1.6
- Thermocouple Type: E Type
- Thermal contact type: ungrounded type
- Sheath Tube Material: SUS316
- Sheath length (mm): 500
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
