65-3530-60 Air Temperature Sensor AT Series -50~500°C Sensor Shape: Pipe E Type AT-30E-050-1-TC1-ASP
Product Description
Product Model: 65-3530-60Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3530-60
Product Brand: ANRITSU METER CO., LTD.
Features
- The AT series is a temperature sensor dedicated to air temperature with reduced heat capacity at the tip.
- [Application] Temperature measurement of air conditioner outlet, temperature control of air conditioning equipment
Spec
- Operating temperature range (°C): -50~500
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 0.3

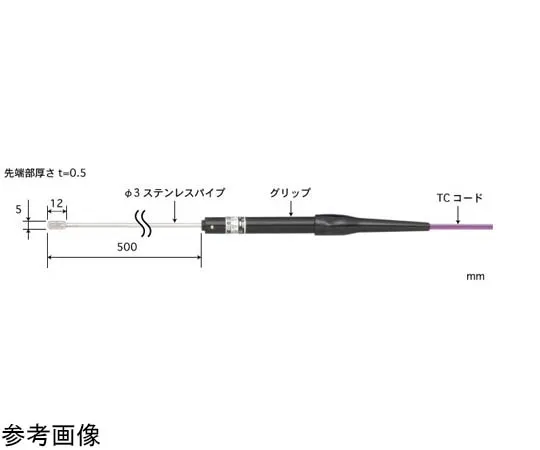

- Sensor Shape: Pipe
- Thermocouple Type: E Type
- Pipe length (mm): 500
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
