65-3530-58 Air Temperature Sensor AT Series -50~300°C Sensor Shape: Glass Fiber Coated Wire E Type AT-20E-100-0-TS1-ASP
Product Description
Product Model: 65-3530-58Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3530-58
Product Brand: ANRITSU METER CO., LTD.
Features
- The AT series is a temperature sensor dedicated to air temperature with reduced heat capacity at the tip.
- [Application] Temperature measurement of air conditioner outlet, temperature control of air conditioning equipment
Spec
- Operating temperature range (°C): -50~300
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 0.3

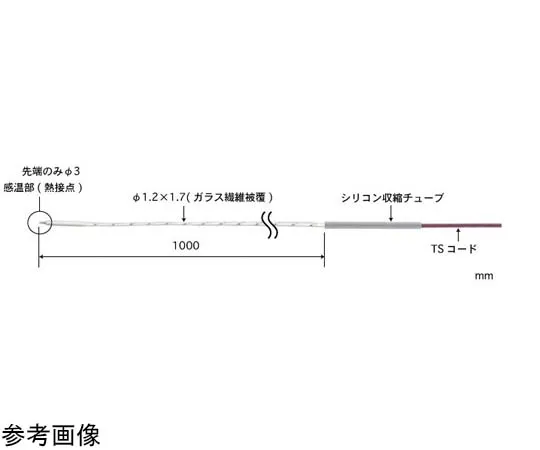

- Sensor Shape: Glass Fiber Coated Wire
- Thermocouple Type: E Type
- Length of sheathed thermocouple wire (mm): 1000
- With/without grip: None
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
