65-3530-45 Low Temperature Sensor BR Series -100~200°C 100 mm K Type BR-01K-1-TS1-ASP
Product Description
Product Model: 65-3530-45Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3530-45
Product Brand: ANRITSU METER CO., LTD.
Features
- BR series is a low temperature sensor suitable for freezers, refrigerators, constant temperature baths, incubators, etc. The flat wire part can be easily inserted in the door.
- [Application] Temperature control and temperature measurement in frozen foods and freezers, etc.
- Liquid and semi-solid temperature measurement in freezers and thermostatic chambers, etc.
Spec
- Operating temperature range (°C): -100~200
- Tolerance at – 40~200 deg. C (deg. C): ±2.5
- Response Time (sec): 1.5
- Durability: Over six months

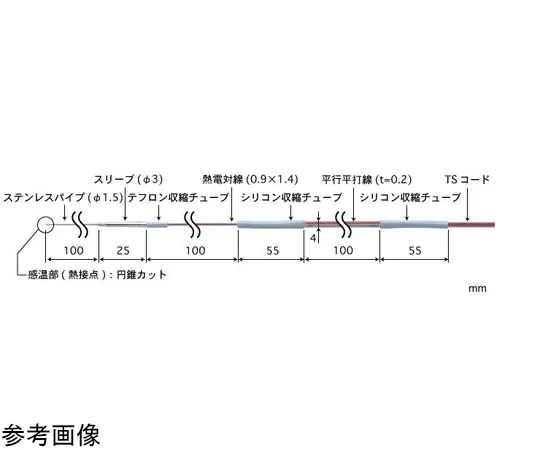

- Thermocouple length (mm): 100
- Thermocouple Type: K Type
- Length of parallel flat driving wire (mm): 100
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
