65-3530-34 Pricking Type Temperature Sensor BT Series -200~210°C Response Speed (sec): 0.5 E Type BT-11E-TC1-ASP
Product Description
Product Model: 65-3530-34Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3530-34
Product Brand: ANRITSU METER CO., LTD.
Features
- The BT series has a thermal contact welded inside the needle tip, and is a piercing type temperature sensor suitable for measuring semi-solid objects.
- We also have a needle exchange type.
- [Application] Temperature control of resin and rubber before solidification, etc.
Spec
- Material: Pipe Material/Stainless Steel (SUS304), Grip Material/Black Phenol Resin
- Operating temperature range (°C): -200~210
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 0.5
- Durability: Over six months

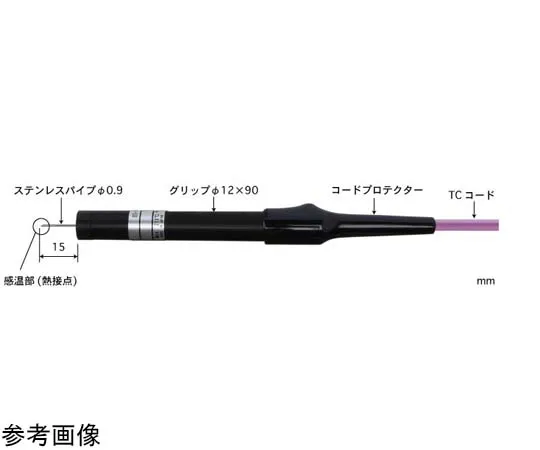

- Needle Outer Diameter (φmm): 0.9
- Needle length (mm): 15
- Tip Shape: Diagonal Cut
- Thermocouple Type: E Type
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
